SCADA Data

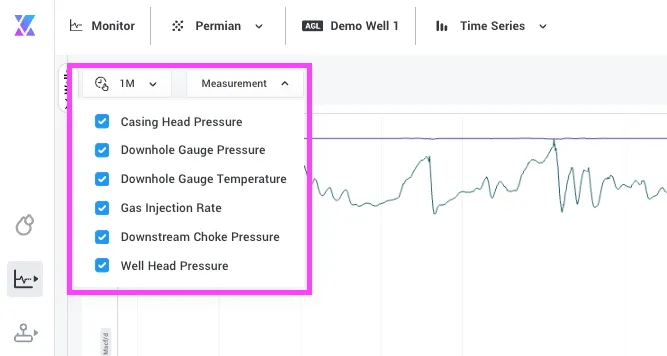

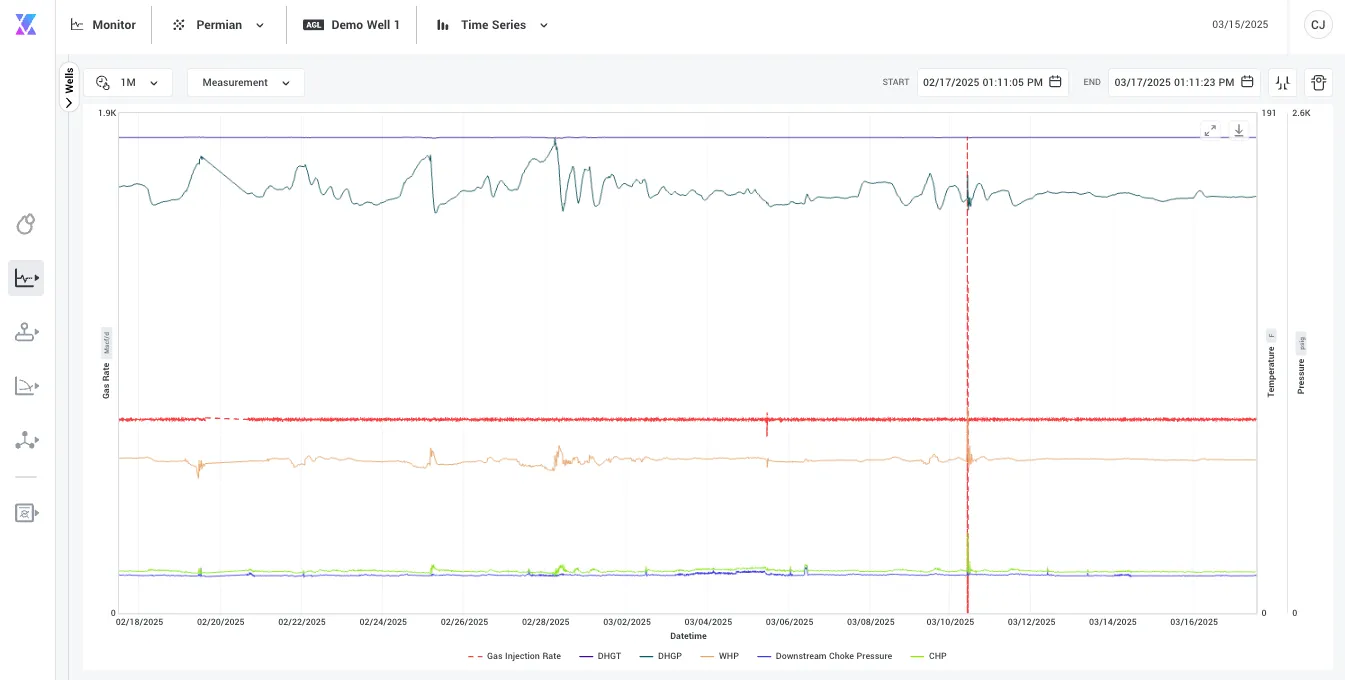

the scada data screen allows users to plot high frequency data over the selected time range for attributes which have been ingested into prodx for information on general navigation including well selection, time range selection, general charting functionality, wellbore diagrams, and wellhead diagrams see docid\ huhnxuevzcgcmctrxq8es the measurement dropdown shows available attributes for the selected well series can also be turned on or off in the legend you can press ctrl (cmd on mac) + click on a series in the legend to isolate it you can also click and drag on the chart area to zoom or click on drag on the y axis to dynamically adjust the scale
