Monitor

Issues

Summary

The Issues screen lists all historical issues identified by ProdX and displays context for each issue when selected from the list on the left side of the screen. For general information about well selection, time selection, charting functionality, model settings, wellbore diagram, and wellhead diagram see: General Navigation.

For more information about issue / anomaly detection logic, please see: Anomaly Detection.

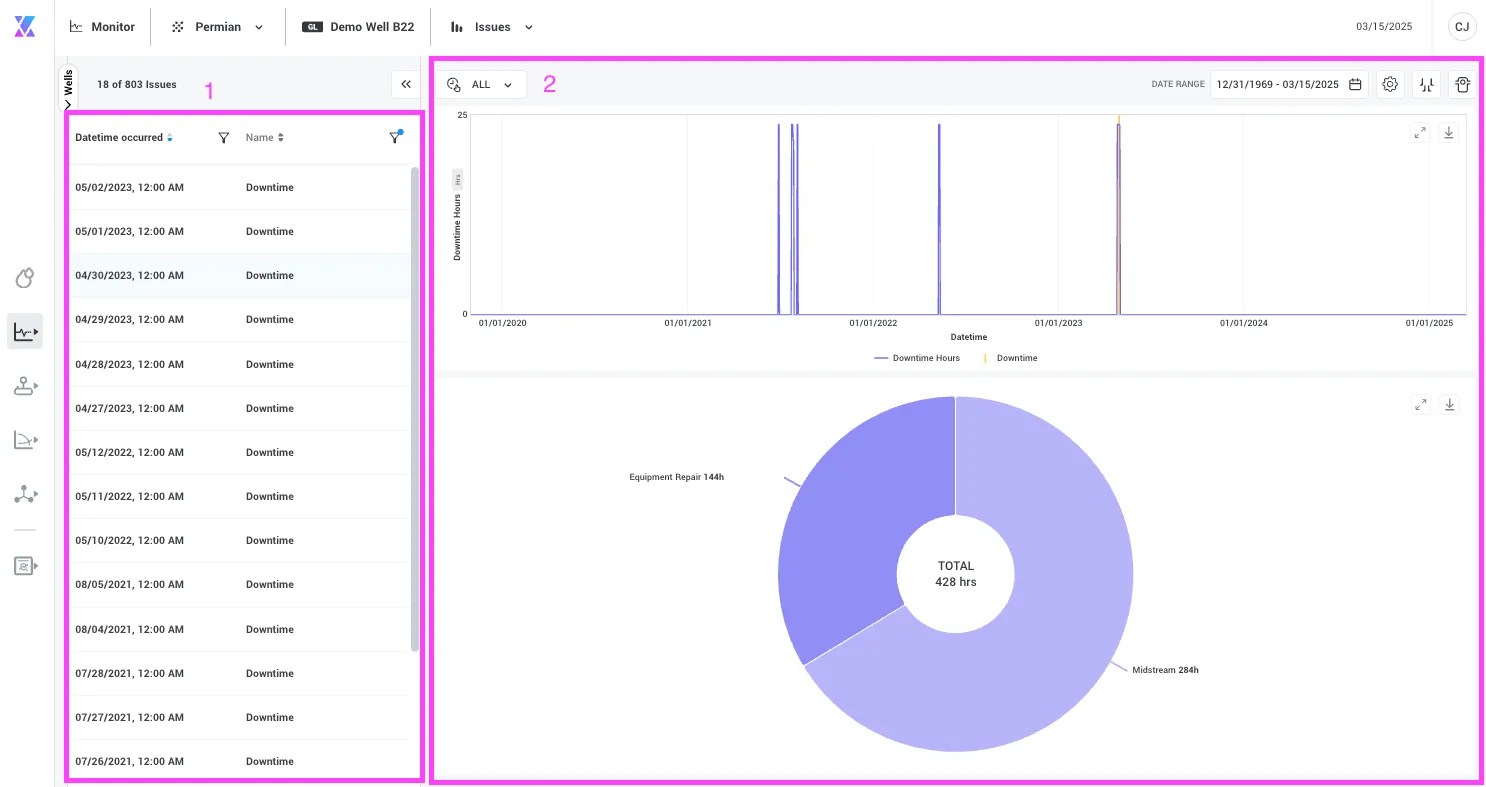

The screen can be divided into two regions: (1) Issue Table and (2) Contextual Information

Document image


Issue Table

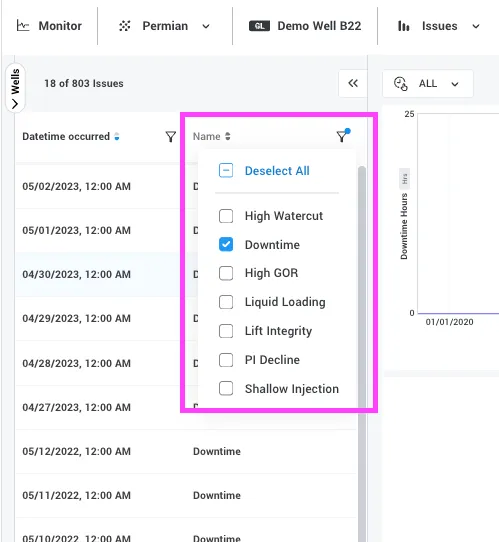

The issue table shows all issues detected by ProdX for the selected well. Each column can be sorted and filtered. Clicking the filter icon beside the column name will bring up options to narrow down the list.

Document image

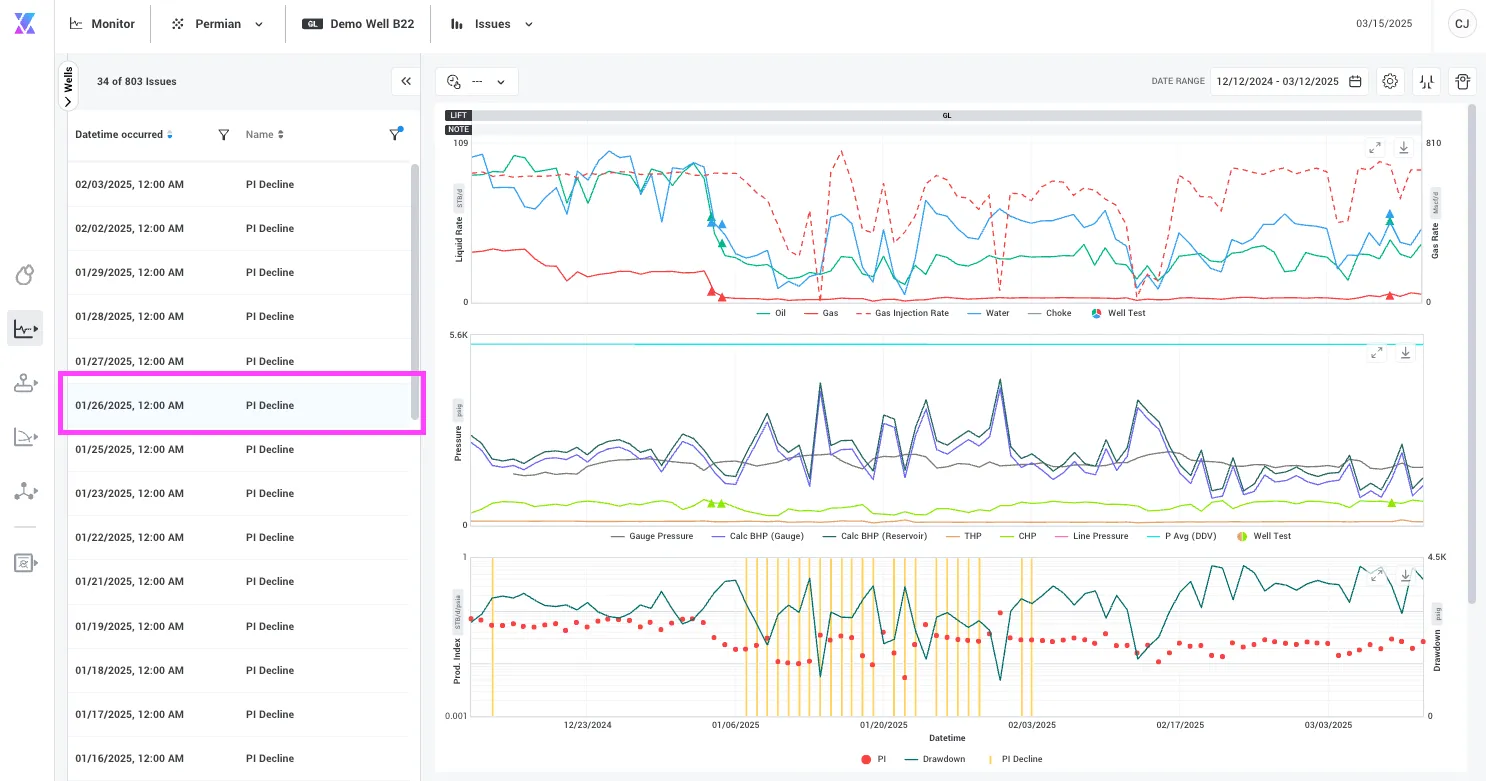

Clicking on a table row / issue will load context about that issue in the right pane.

Contextual Information

Each issue type will load specific content depending on the type of issue. In a general sense, this contextual information is simply the analysis page related to that type of issue. For example, any issues related to gas lift will load the Gas Lift page on the right and any issues related to production (high GOR, high water cut) will load Production, with some specific annotations to add context to the selected issue. Some issues have unique pages, such as downtime.

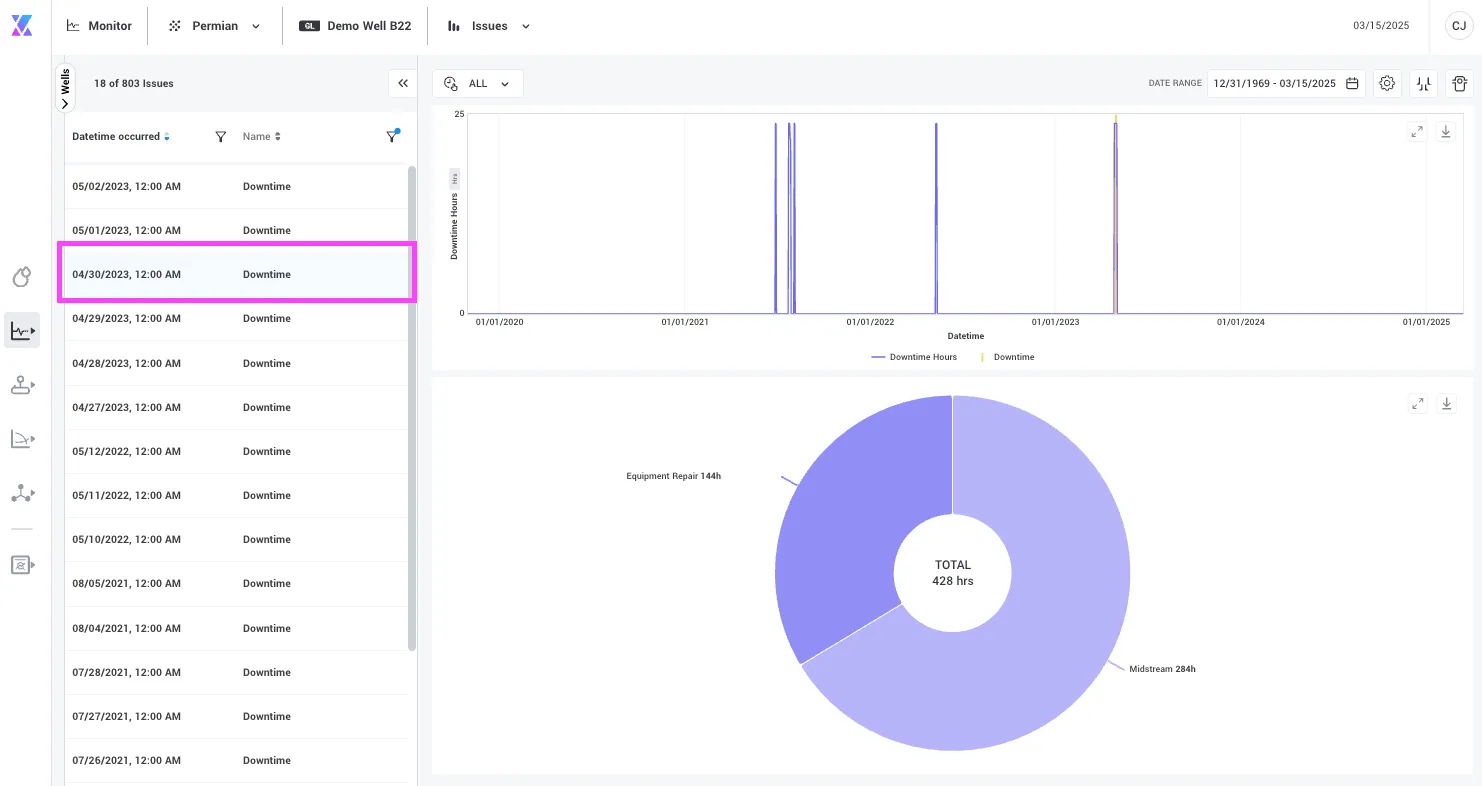

Downtime Issue
Downtime Issue

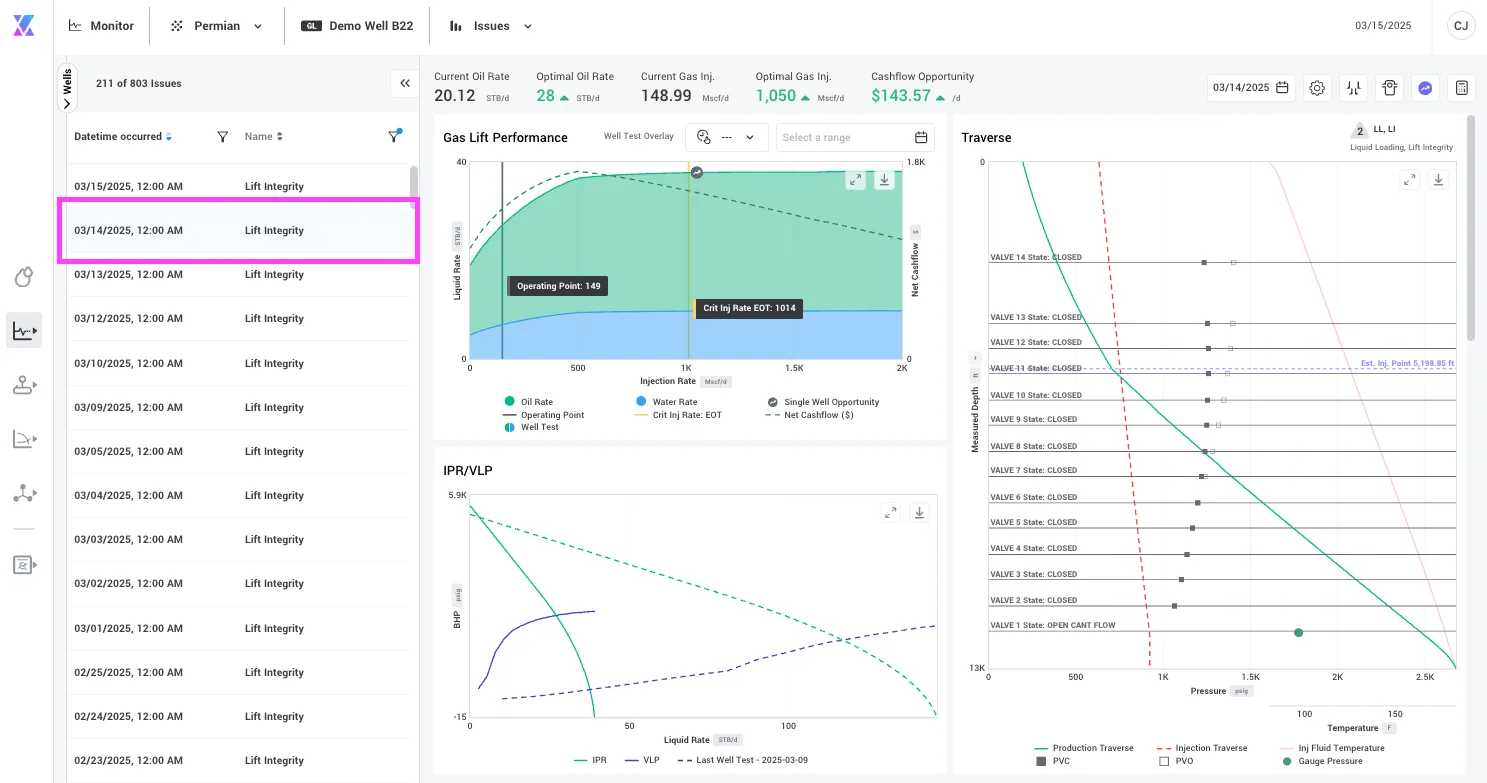

Lift Integrity Issue
Lift Integrity Issue

Document image
