The Production page summarizes both input and calculated daily production values across the well's history. Information on general navigation, including well list, date selection, general charting functionality, wellbore diagram, and wellhead diagram can be found here: General Navigation.

The Production page has four sets of charts:

  1. Rates
  2. Pressures
  3. PI/Drawdown
  4. Ratios

For all charts, you can click and drag on the chart area to zoom in. You can also click and drag on the Y axis to dynamically adjust the scale.

Rates

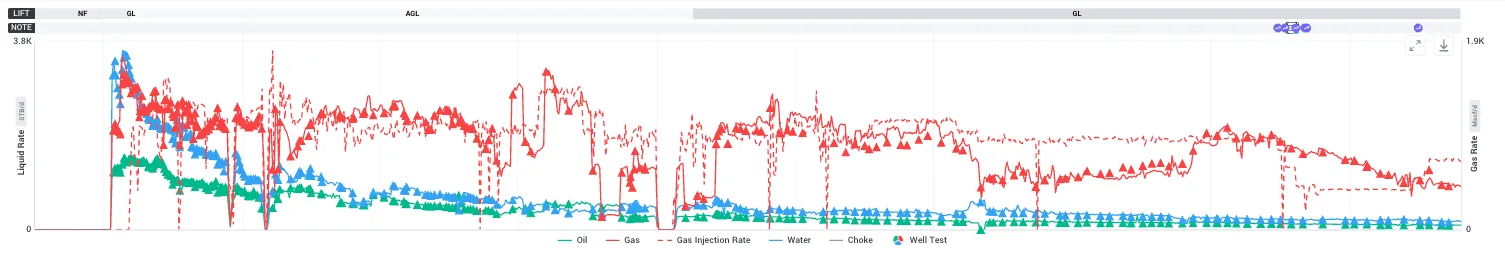

The rates chart shows Oil Rate, Gas Rate, Water Rate, Choke, and Well Test (triangle markers) for all wells. Depending on artificial lift types available in the time range, you may also see Gas Lift Injection Rate, ESP Frequency, SRP Strokes Per Minute, and PCP Speed.

Above the chart you will see the "LIFT" bar which shows the calculated artificial lift method over time as well as the "NOTE" bar which shows notes, Well Events, and accepted Copilot opportunities.

Document image


Pressures

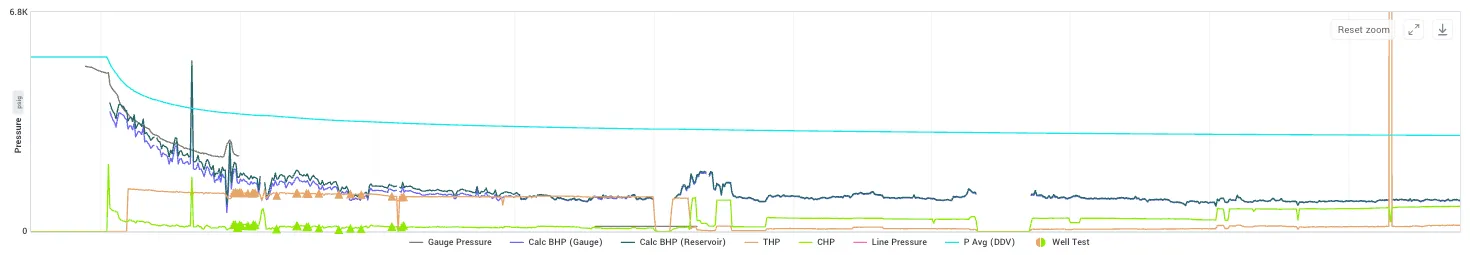

The pressures chart shows measured Gauge Pressure (if available), Calculated BHP (gauge node), Calculated BHP (formation node), Tubing Head Pressure, Casing Head Pressure, Line Pressure, Computed Reservoir Pressure, and Well Test (triangle markers).

For more information on Calculated BHP see: Bottomhole Pressure

For more information on Calculated Reservoir Pressure see: Dynamic Drainage Volume (DDV)

Document image


PI and Drawdown

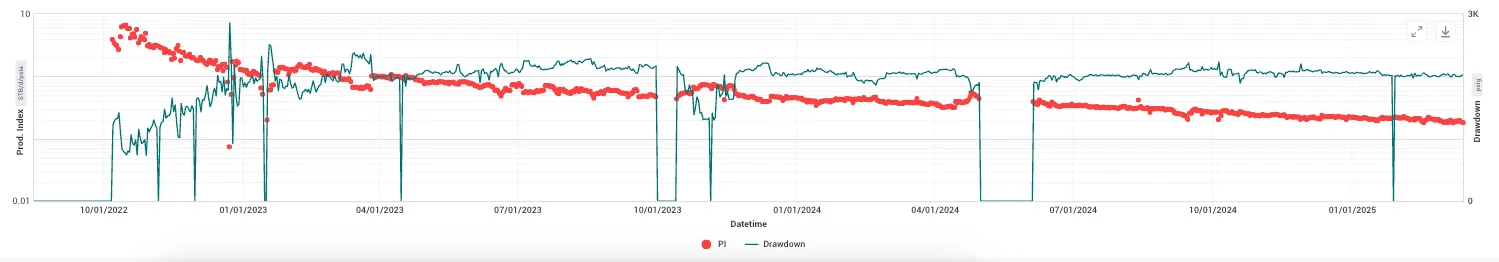

The PI/drawdown chart shows calculated PI Liquid (oil wells) or PI Gas (gas wells) alongside drawdown (Reservoir Pressure - Calculated BHP Reservoir Node). Note: PI is shown on a log scale.

Document image


Ratios

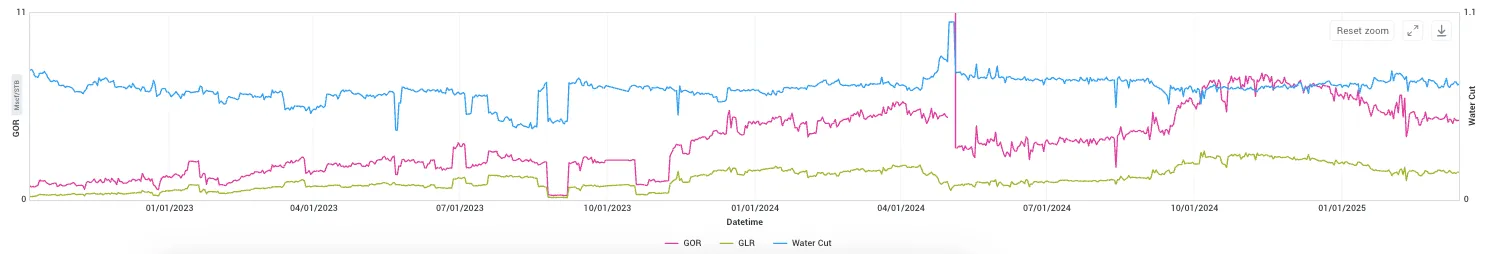

If you scroll down, the Ratios chart shows the Gas/Oil Ratio, the Gas/Liquid Ratio, and the Water Cut.

Document image
