General Navigation

Group Selection

ProdX segments wells by group1 from the Well table. To change group, you can use the breadcrumb at the top of every page.

Document image

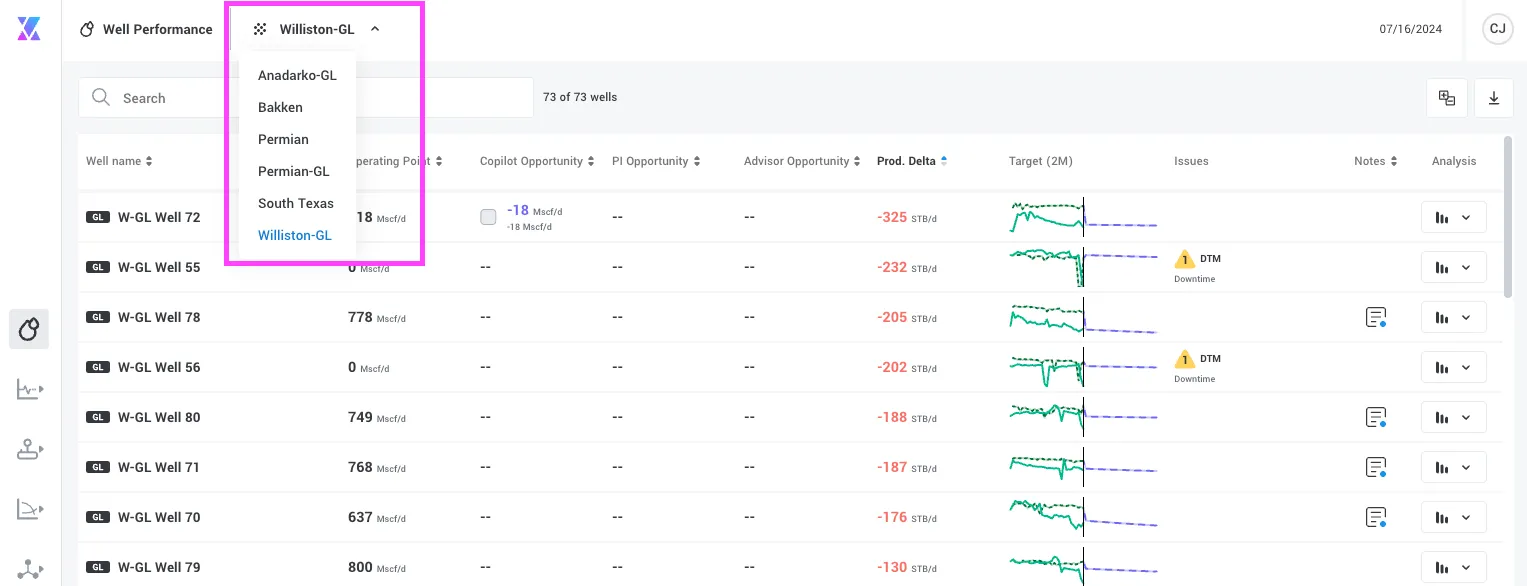

Workflow Selection

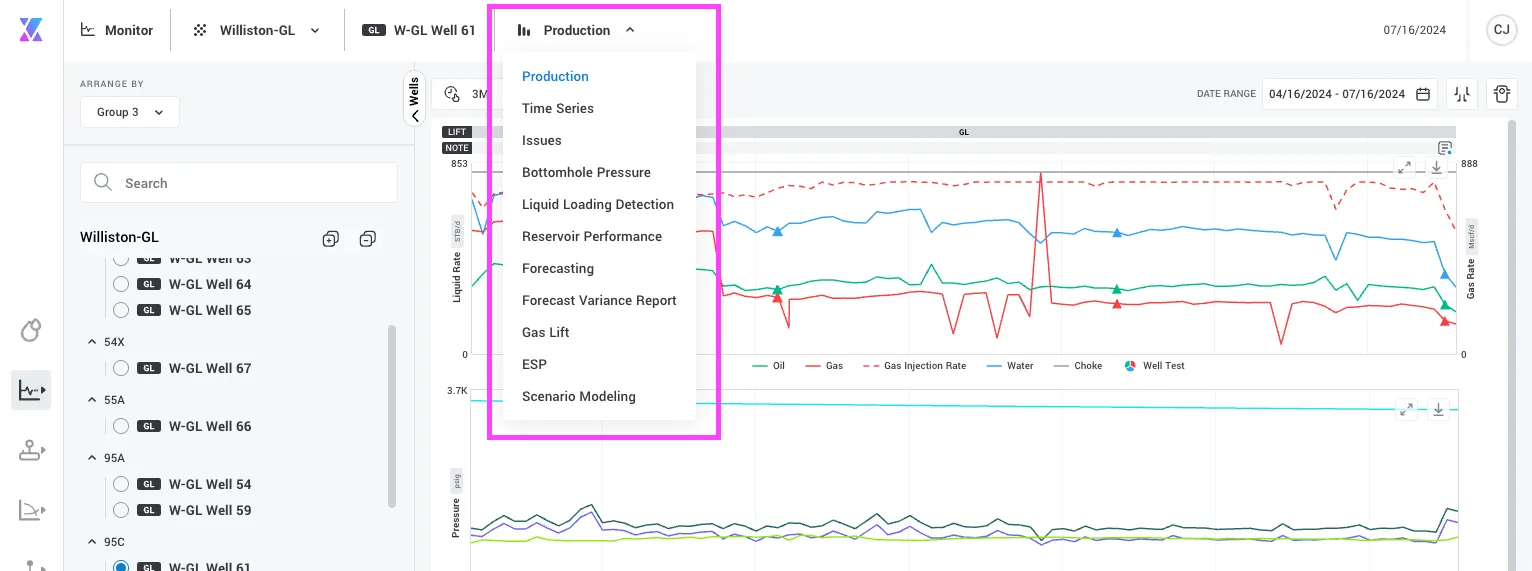

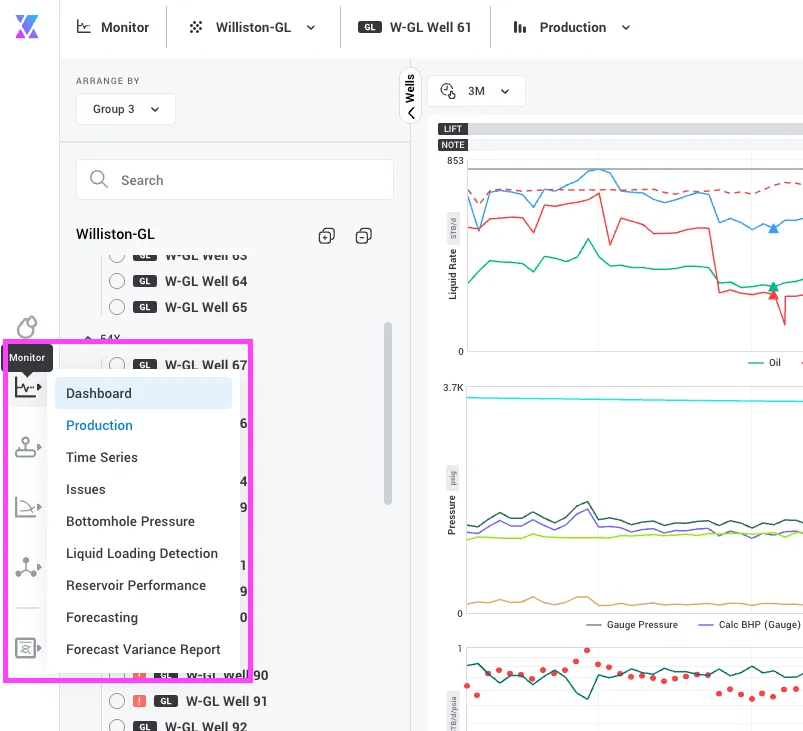

Workflows can be selected in two ways: on the left side of the main dashboard, or at the top of well-level screens in the breadcrumb.

Document image

Document image

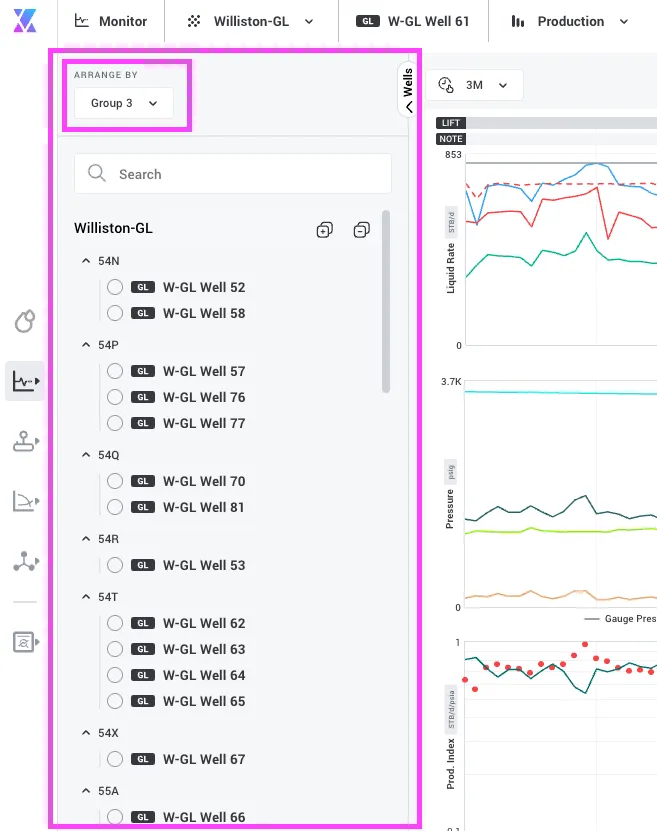

Well Selection

Well selection is available on the left-hand side of the page. Depending on page functionality, the list may allow single or multiple selection. The hierarchy of the well list can be adjusted with the "arrange by" dropdown.

The badge to the left of the well name shows the current lift type, as calculated by ProdX. If there are data quality errors which will prevent modeling on the well, a red "!" will appear to the left of the lift type badge.

Document image

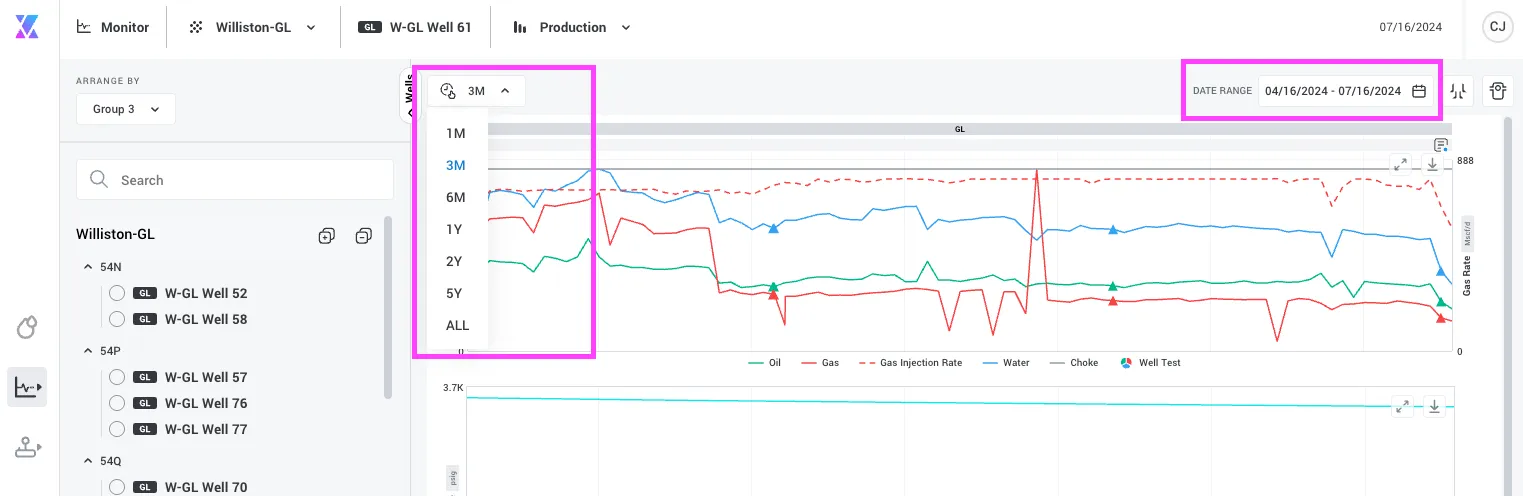

Time Range Selection

Many screens have time range selectors. On the left side of the screen is a relative time picker which will select that duration from the end of the well. On the right side is a manual start/end time selection.

Document image



Analysis Context Options

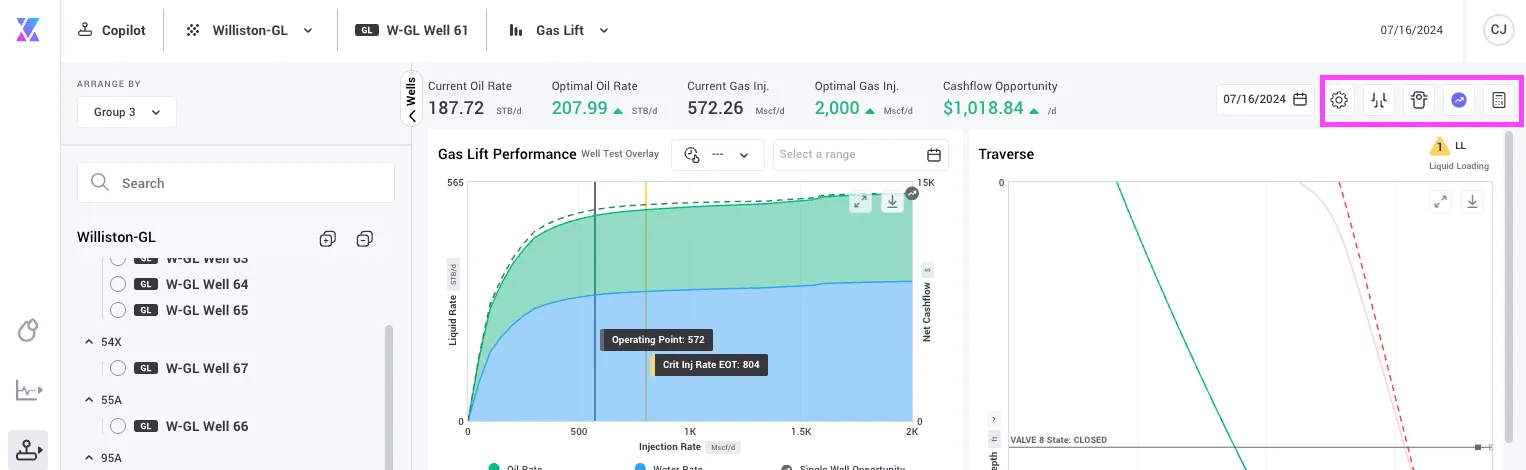

Analysis screens have various buttons in the top right that situationally appear depending on the active analysis screen which provide additional context and options.

Document image


Model Settings

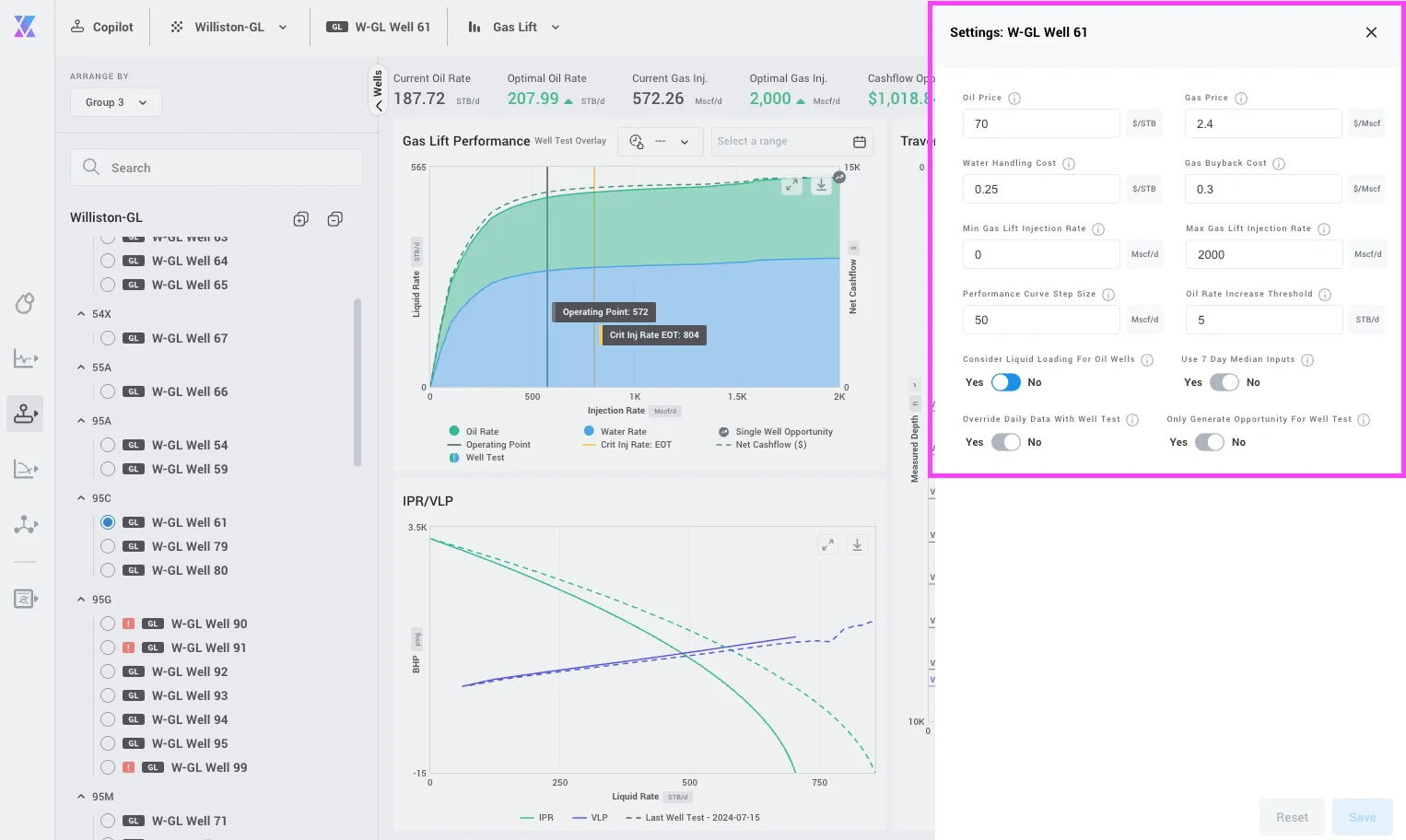

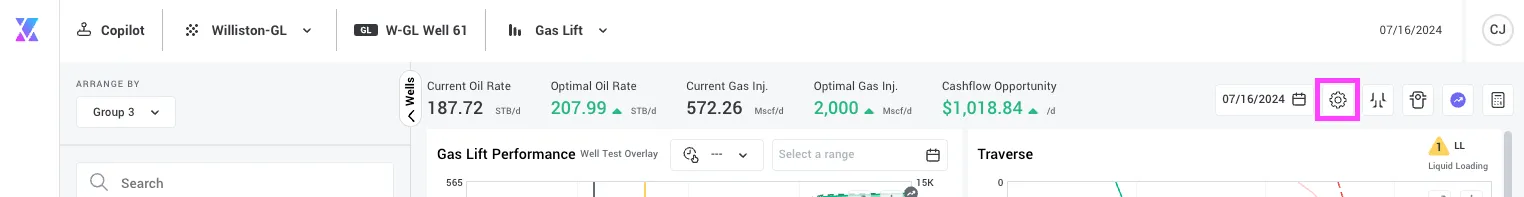

The "gear" icon opens a side panel with model settings specific to that screen. In general, changing model settings will immediately trigger that well to recalculate. The screen will need refreshed after a short wait to see updated data.

Document image

Document image


Wellbore Diagram

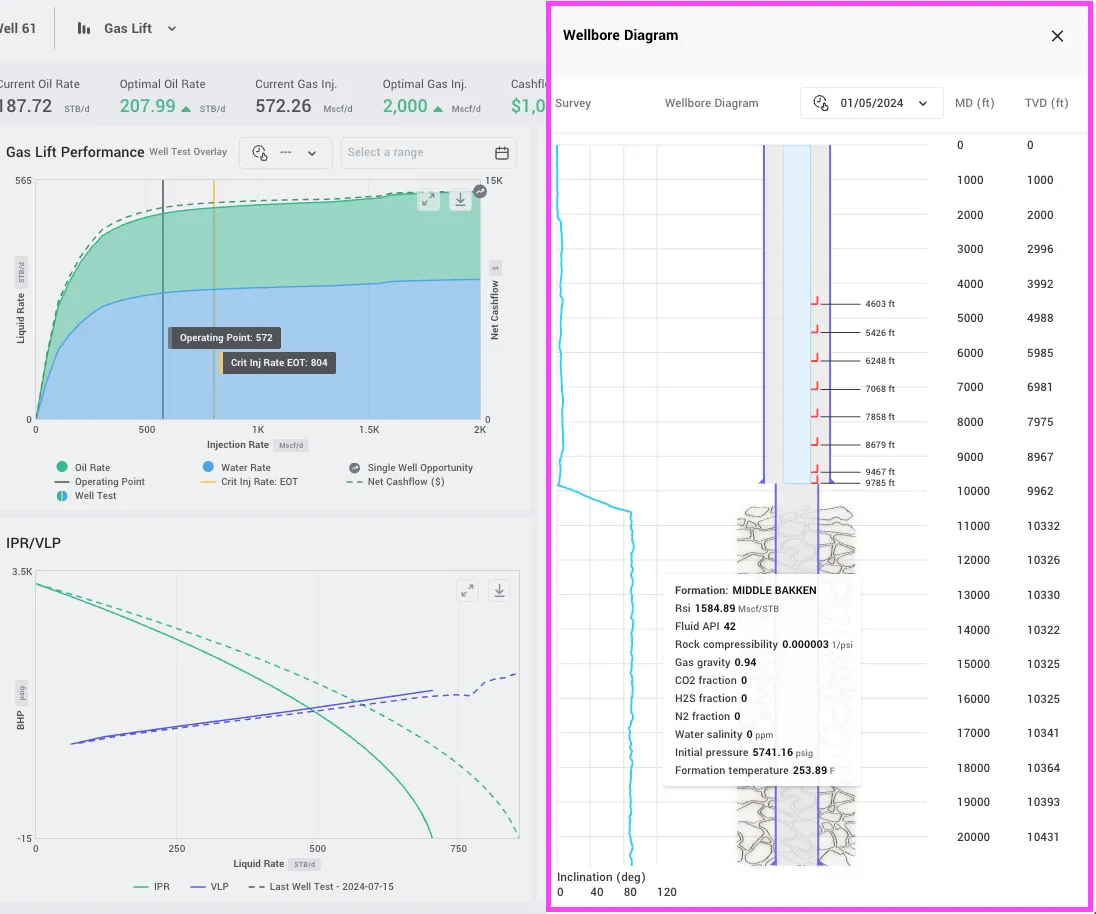

The wellbore daigram shows the current configuration of the well by default. Equipment and formation details can be found by hovering over the element to see a tooltip. Above the diagram is a date picker that lets you view historical configurations.

Document image

Document image

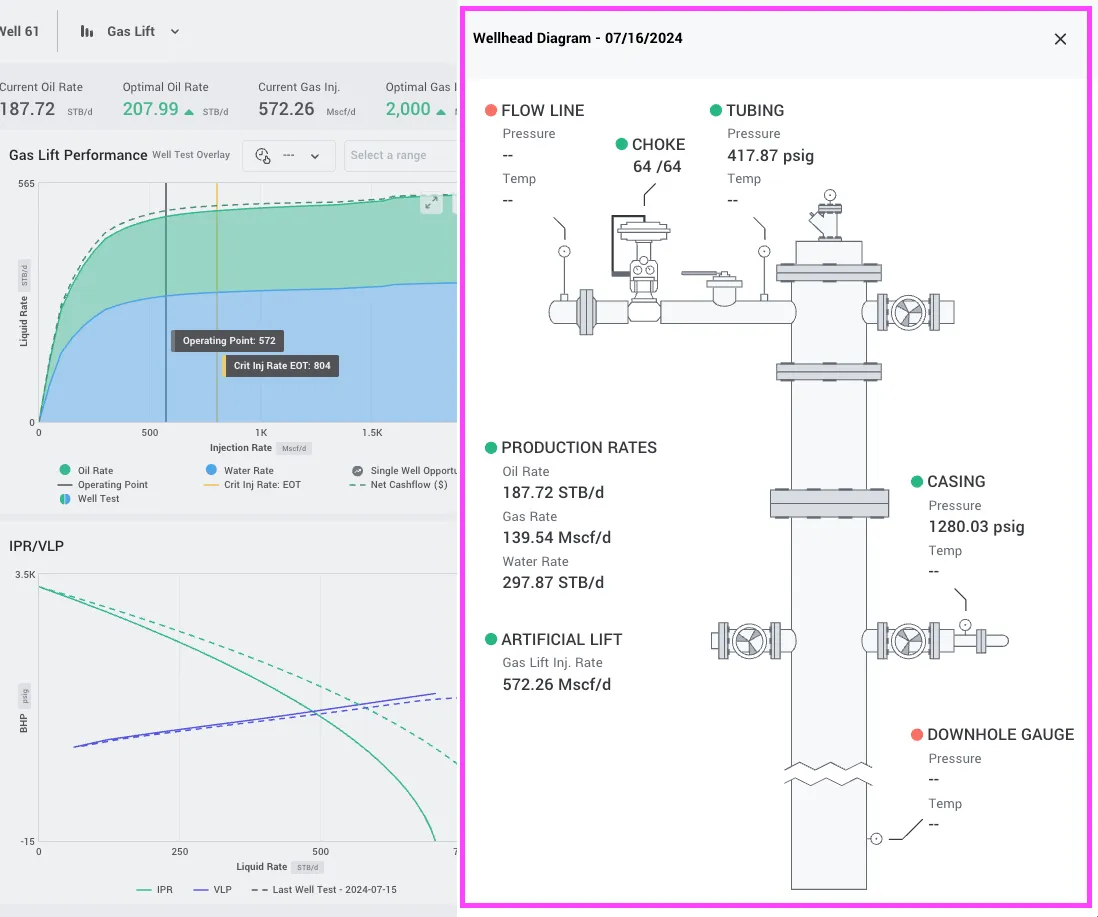

Wellhead Diagram

The wellhead diagram shows a generic wellbore configuration with most recent daily values populated over the respective equipment.

Document image

Document image

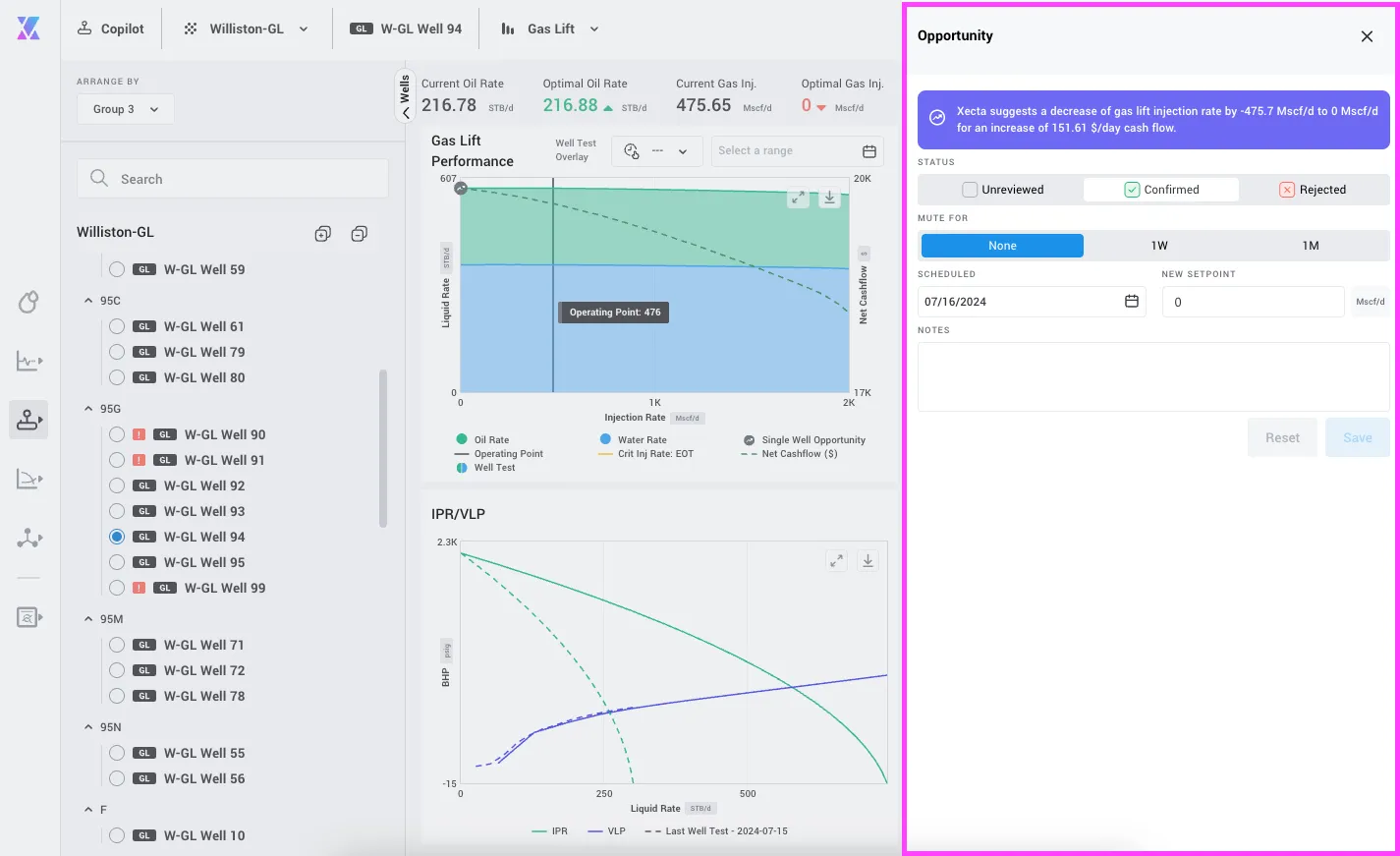

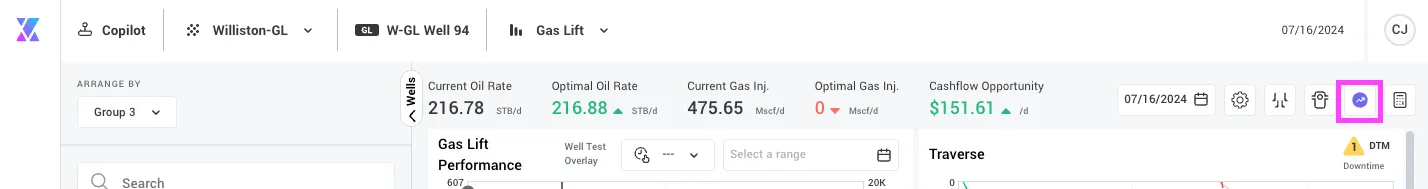

Opportunity

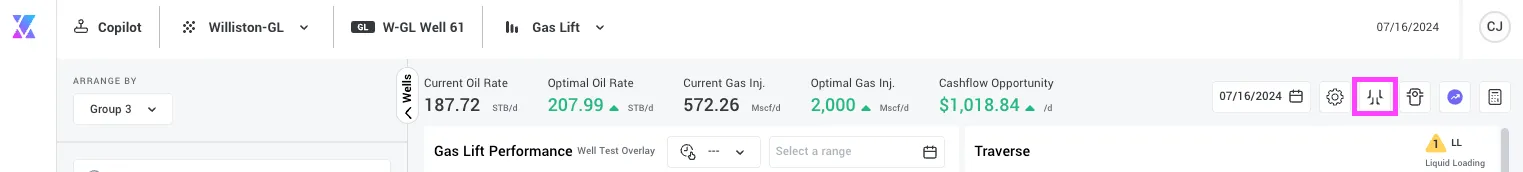

On Copilot screens, the opportunity icon opens a panel which allows you to save setpoint changes.

Document image

Document image

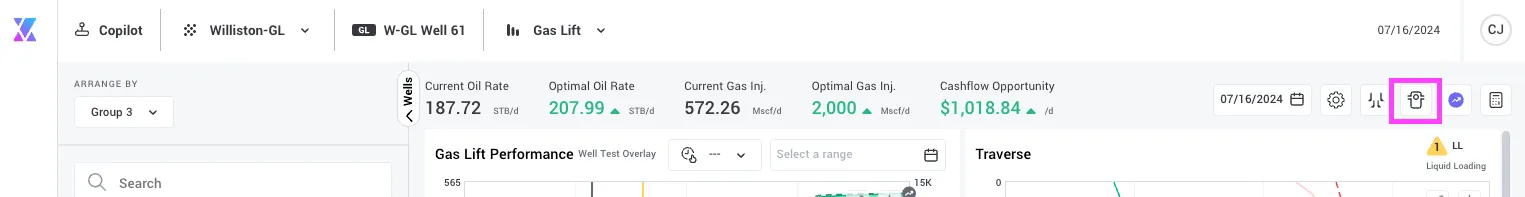

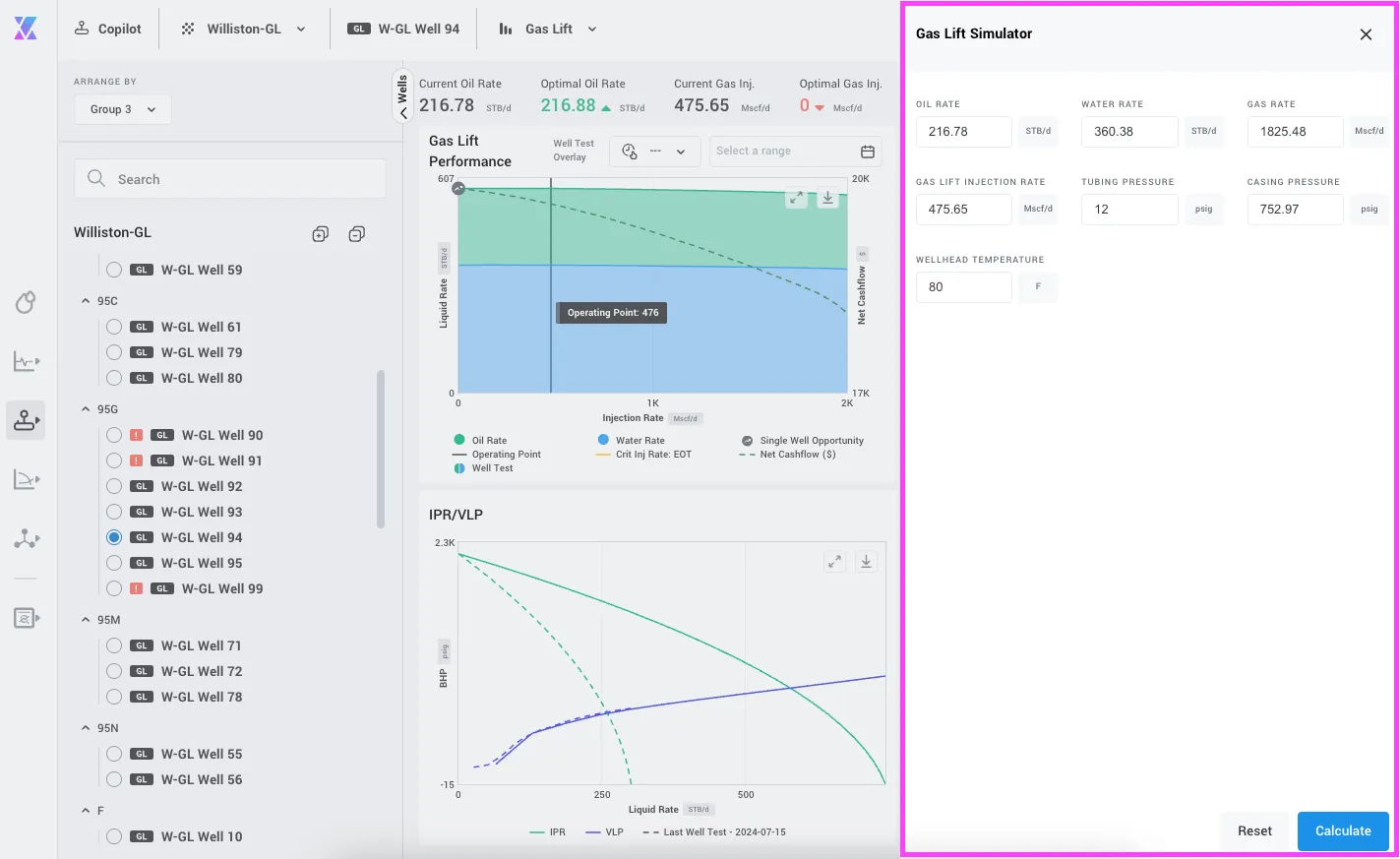

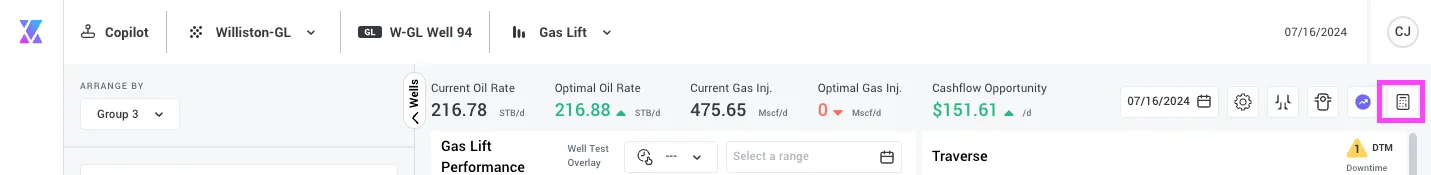

Simulator

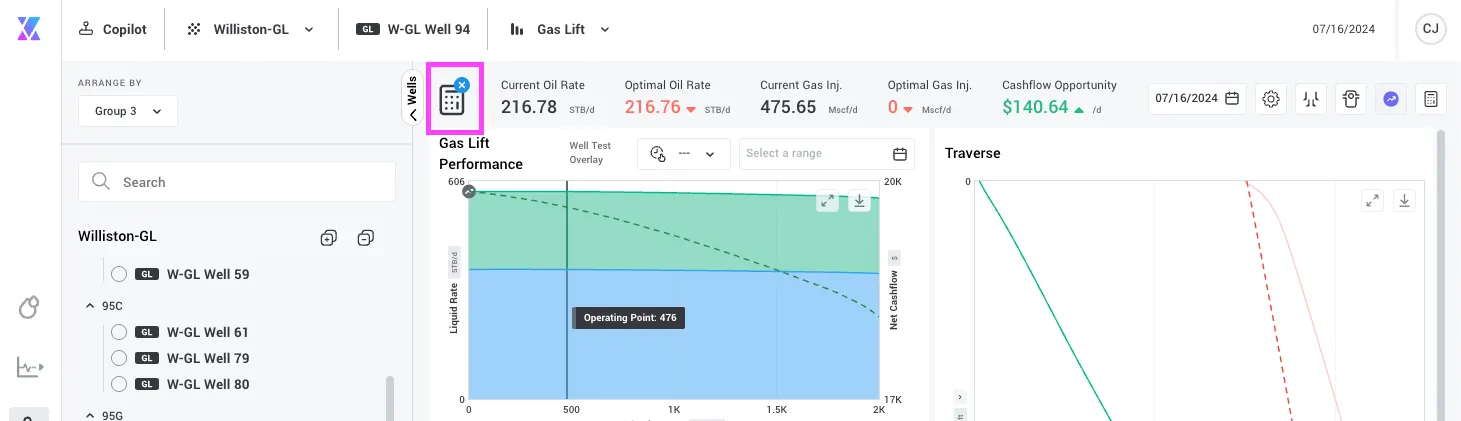

On select copilot screens, the "calculator" icon allows you to adjust daily production input parameters and re-run artificial lift diagnostics. Once a simulation has been ran, the calculator appears in the top left. Clicking the "x" icon will reset the screen to the normal daily data inputs.

Document image

Document image

Document image


Charts

There are a few common functionalities across all charts in the application described below.

Zoom

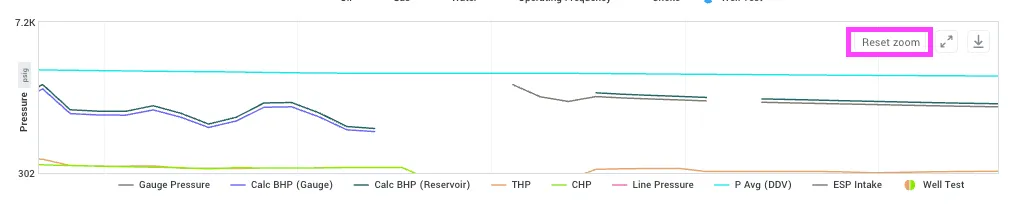

On any chart, you can click and drag on the chart area to zoom. Once zoomed, a "Reset Zoom" appears in the top right of the chart's area.

Document image

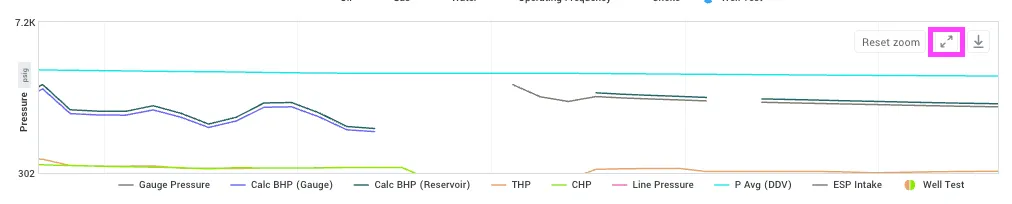

Full Screen

The "expand" icon in the top right of every chart will allow you to view it full screen. Once in full screen mode, press "ESC" on your keyboard to exit.

Document image


Export to CSV

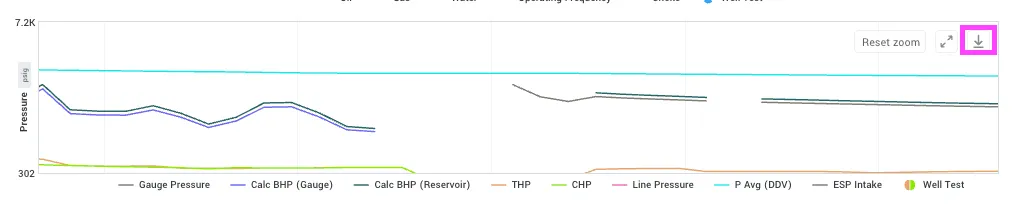

The download button in the top right of each chart will export that chart's data to csv and automatically download the file.

Document image

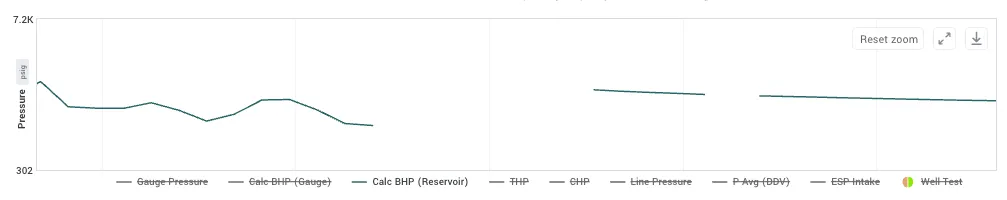

Legend - Hide and Isolate Series

Clicking on any series item will hide that series. Pressing CTRL (CMD on Mac) + clicking on a legend item will isolate that item and automatically hide all other series.

Document image


Dynamic Y-Axis Scaling

Hovering over the Y-axis of each chart will convert your cursor to an up/down arrow. Once you see this arrow, you can click and drag to re-scale the Y-axis.
