Monitor

Dashboard

Summary

The Monitor Dashboard provides a high-level summary of the production performance and opportunities available on the assets and wells that have been selected. Information on navigation, well selection, and general charting functionality can be found here: General Navigation.

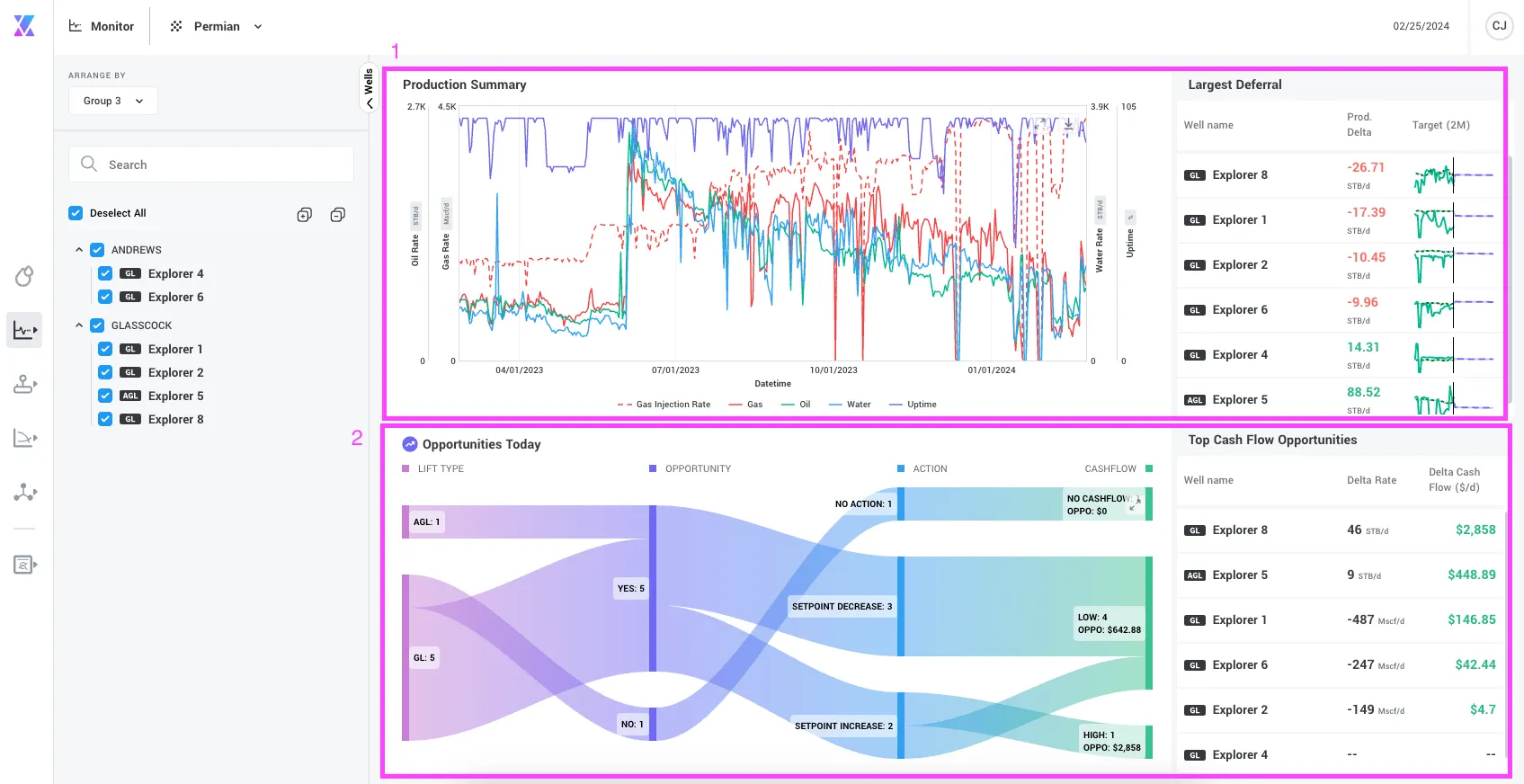

The Monitor Dashboard is divided into two regions: (1) Production and Forecast Summary and (2) Opportunities

Document image


Production and Forecast Summary

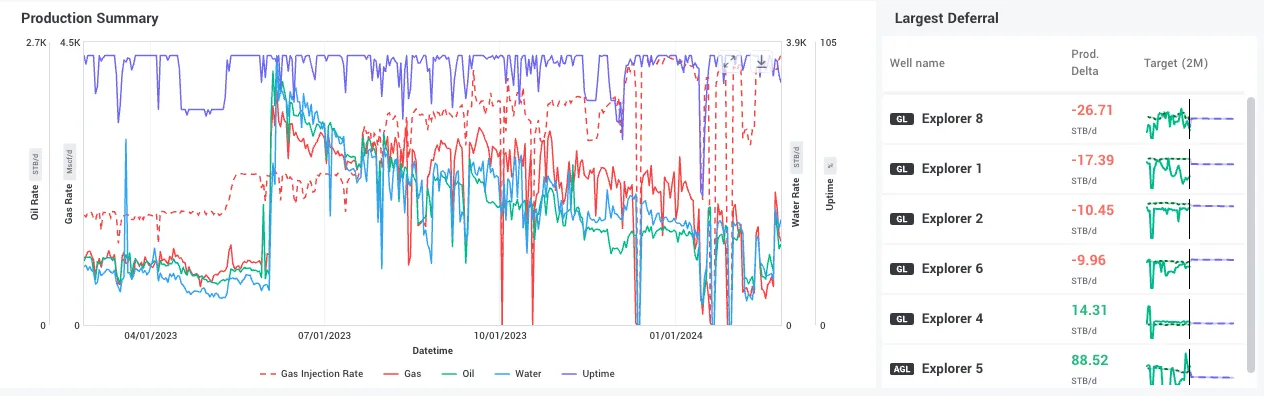

The topmost chart and table represent the production history and forecast summary (largest deferral).

Production Summary (Chart)

The Production Summary chart aggregates Oil Rate, Water Rate, Gas Rate, Gas Lift Injection Rate, and Uptime across all selected wells for the past year.

Larget Deferral (Table)

The Largest Deferral Table ranks the selected wells by the largest variance (prod. delta) between the current productivity-index-based-hindcast oil or gas rate and today's oil or gas rate. In ProdX, a PI-based hindcast uses a long term PI fit excluding the last 30 days of production and then forecasts the last 30 days using actual calculated bottomhole pressure. The "Target (2M)" sparkline shows the past 30 days' oil or gas rate (green solid line), past 30 days' hindcast (green dashed line), and future 30 day's forecast (purple dashed line). In ProdX, a PI-based forecast uses a tail-weighted PI fit of the full history and forecasts into the future using an Arp's fit on calculated bottomhole pressure.

Document image


Opportunity Summary

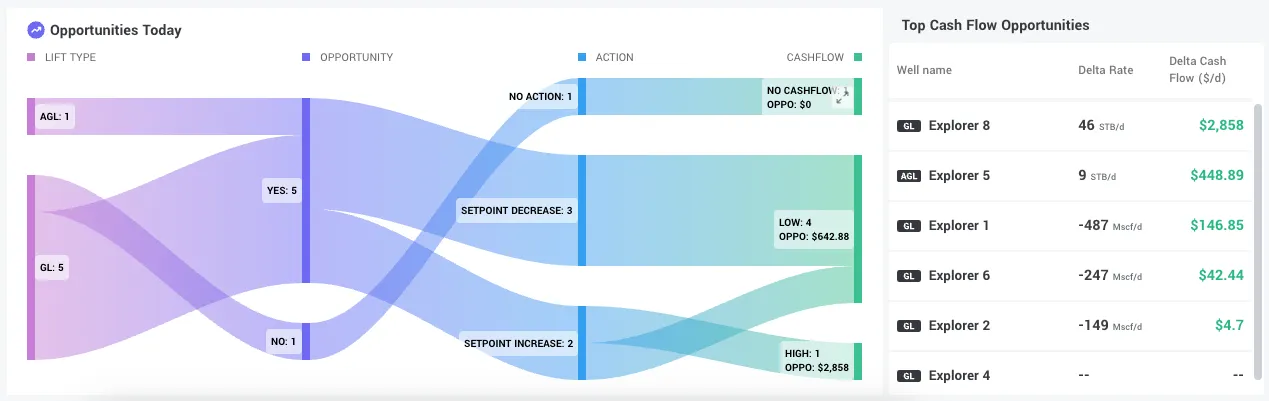

The bottommost chart and table represent a summary of Copilot opportunities across the selected wells. If an artificial lift setpoint change yields a positive cashflow, it will be treated as an opportunity in ProdX.

Opportunities Today (Sankey Diagram)

The Opportunities Today Sankey diagram shows the breakdown of opportunities by lift type, whether there is an opportunity or not, the recommended action, and the cash flow impact. For cash flow impact, wells are automatically ranked into percentiles to represent high and low cashflow, so the bucketing of wells will be dynamic based on selection.

Top Cash Flow Opportunities (Table)

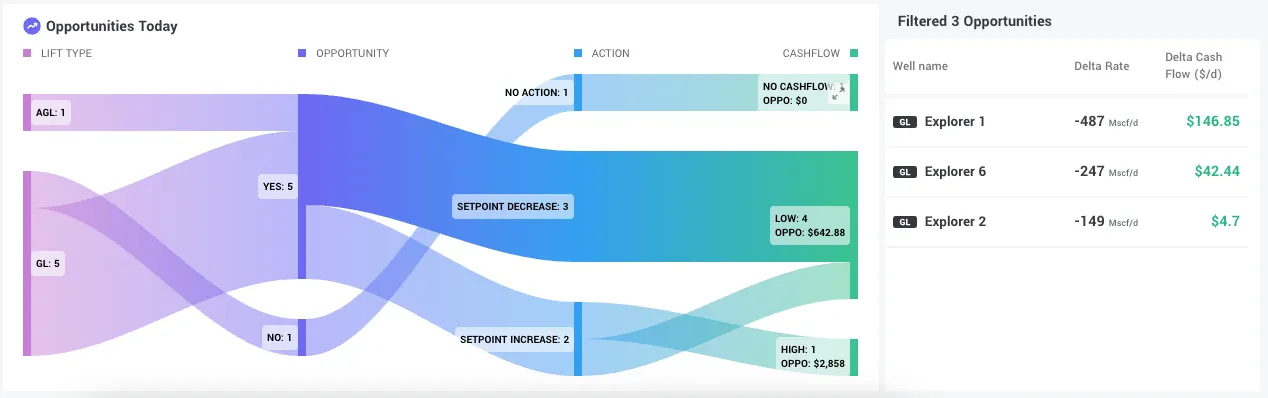

By default, the table on the right titled "Top Cash Flow Opportunities" shows a cash-flow-ranked list of the top 10 opportunities by cash flow. Clicking any branch of the Sankey diagram will adjust the table to show the category selected. Clicking on that branch again will reset the table to the default top 10 list.

Document image

Document image
