Well Performance Dashboard

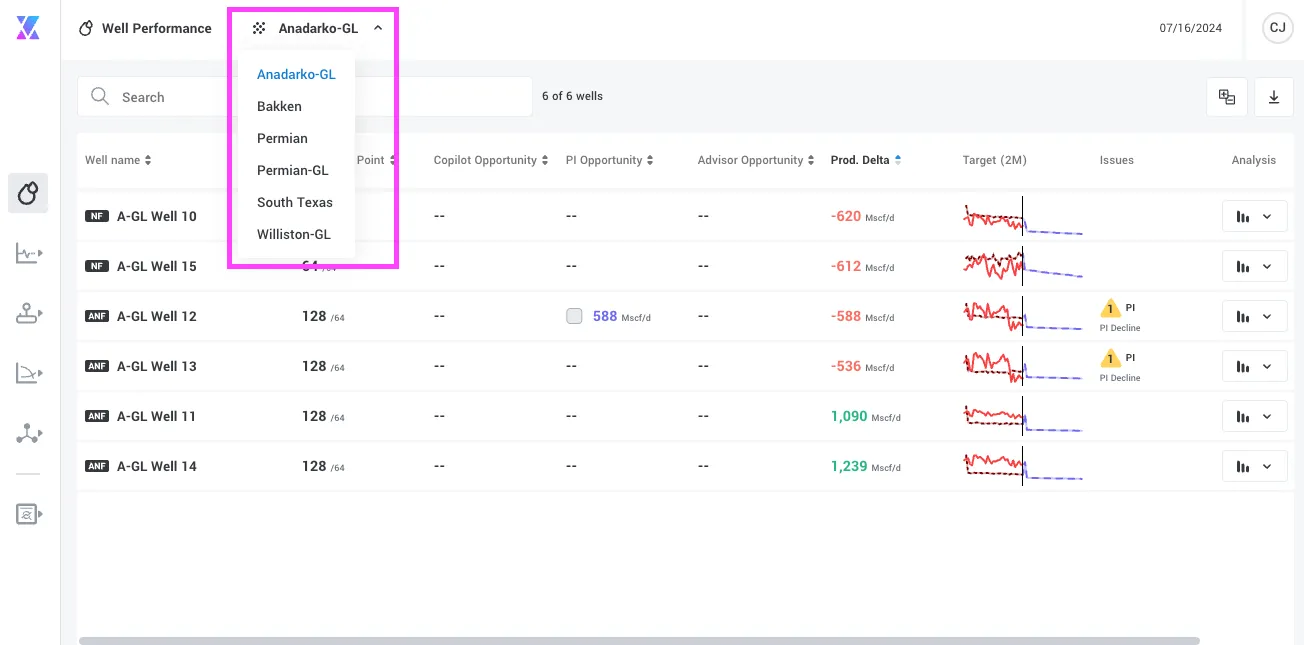

The well performance dashboard provides a snapshot of the performance of every well in the selected group (group1 from Well). To change groups, use the dropdown at the top of the screen.
The default columns on the well performance table are summarized as follows:
- Well Name - Lists the well name and current lift type inferred from daily production records. Any data quality errors will be highlighted with a red "!" beside the well's name.
- Operating Point - Current operating point of the well based on the computed artificial lift type.
- Natural Flow - Choke
- Gas Lift - Gas Lift Injection Rate
- ESP - Frequency
- Rod Pump - Strokes Per Minute
- PCP - Speed (RPM)
- Copilot Opportunity - If there is an opporuntity to optimize the artificial lift operating point from copilot analysis, it will appear here
- PI Opportunity - If a PI decline Anomaly Detection issue is detected and the root cause is inferred to be an inflow issue, the opportunity associated with restoring that PI to the previous trend is shown here.
- Advisor Opportunity - If any alternate Advisor Scenario Modeling scenarios yield a positive NPV for today, they will be shown here.
- Prod Delta - Shows the difference between the hindcasted oil or gas rate today compared to the actual.
- Target (2M) - Shows a sparkline of primary phase rates (oil or gas, green or red curve) compared to the Productivity Index-Based Forecast (PIBF) (dashed purple line) and PIBF Hindcast (dashed green line).
- Issues - Summarizes the well/production issues detected by ProdX for the current day
- Notes - Allows users to post new notes and view a timeline of historical notes and setpoint changes
- Analysis - Links to detailed workflows at the well-level. Available analysis pages vary by well type (conventional/unconventional), primary fluid type, and current lift type:
- Production (Daily)
- Time Series (SCADA)
- Issues
- Bottomhole Pressure (Traverse)
- Liquid Loading Detection
- Reservoir Performance
- Forecasting
- Forecast Variance Report
- Gas Lift
- ESP
- Advisor Scenario Modeling
- Shut In Analysis (Conventional Only)
- Static Material Balance (Conventional Only)
- Flowing Material Balance (Conventional Only)
- Well Model Calibration (Conventional Only)
- Choke Erosion (Conventional Only)
- Modified Hall Plot (Conventional Only)

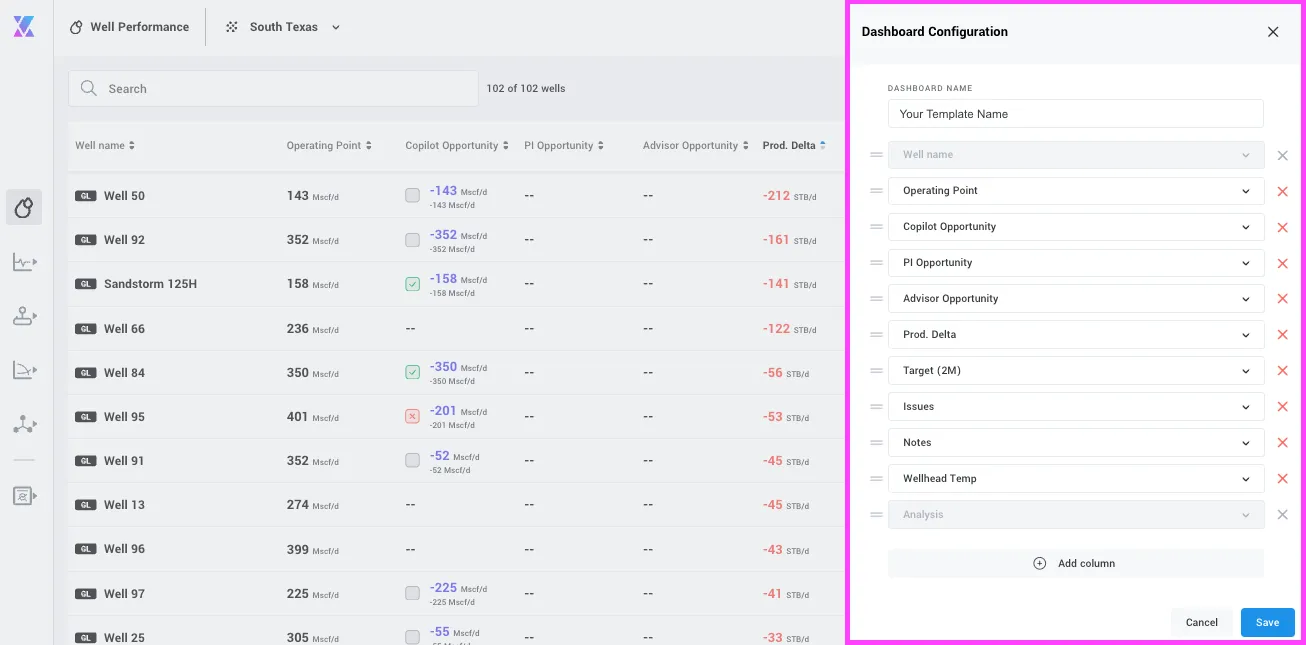

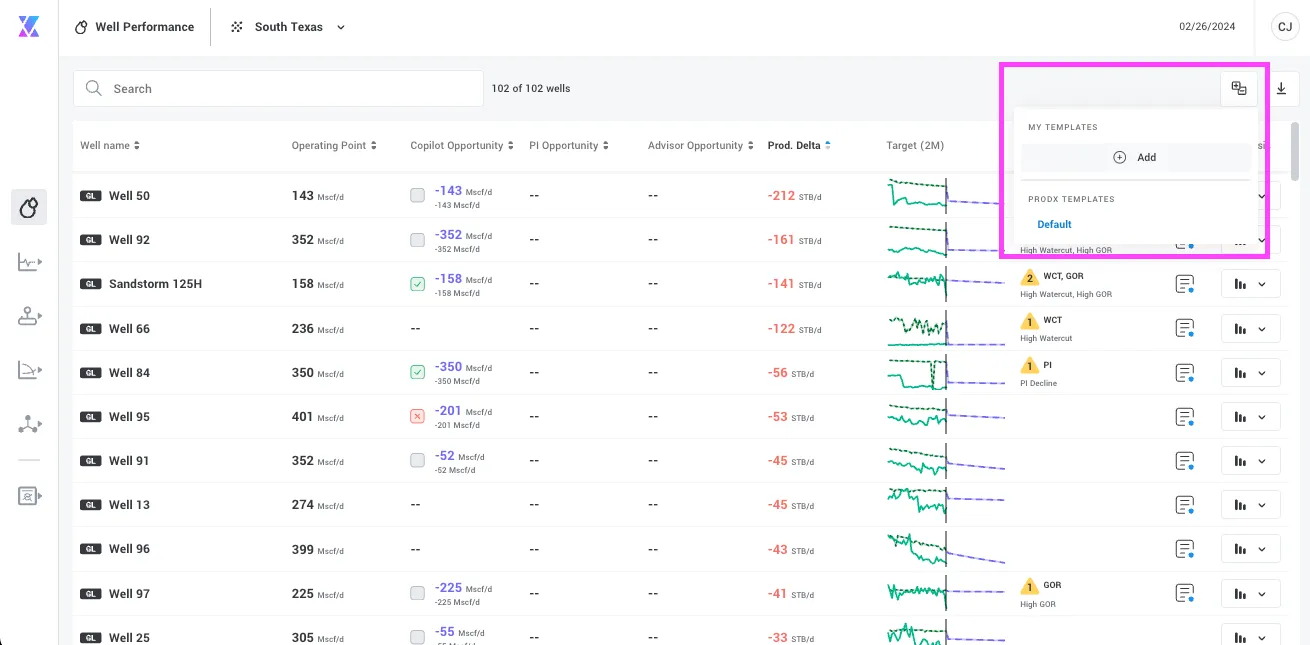

Clicking the "+/-" icon at the top right corner of the Well Performance Dashboar table allows users to manage templates. You can add as many custom templates as you would like, which allow you to remove any default columns and add new columns from most-recent values of daily data and daily calculated data.

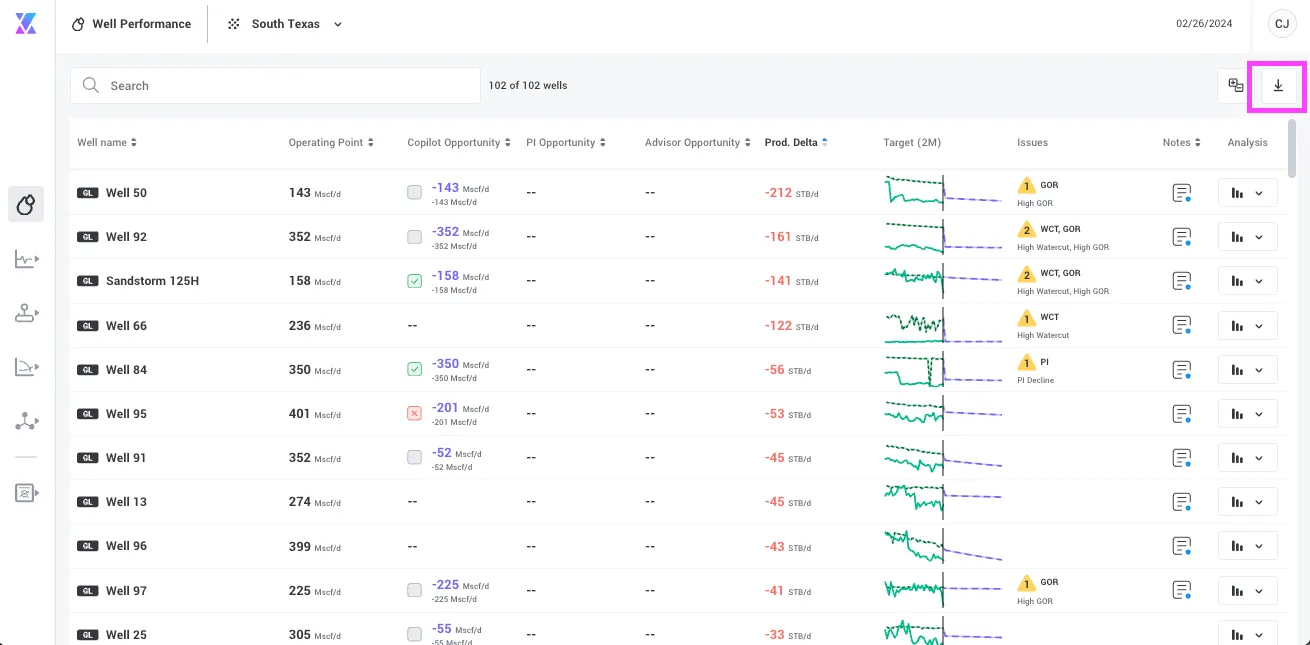

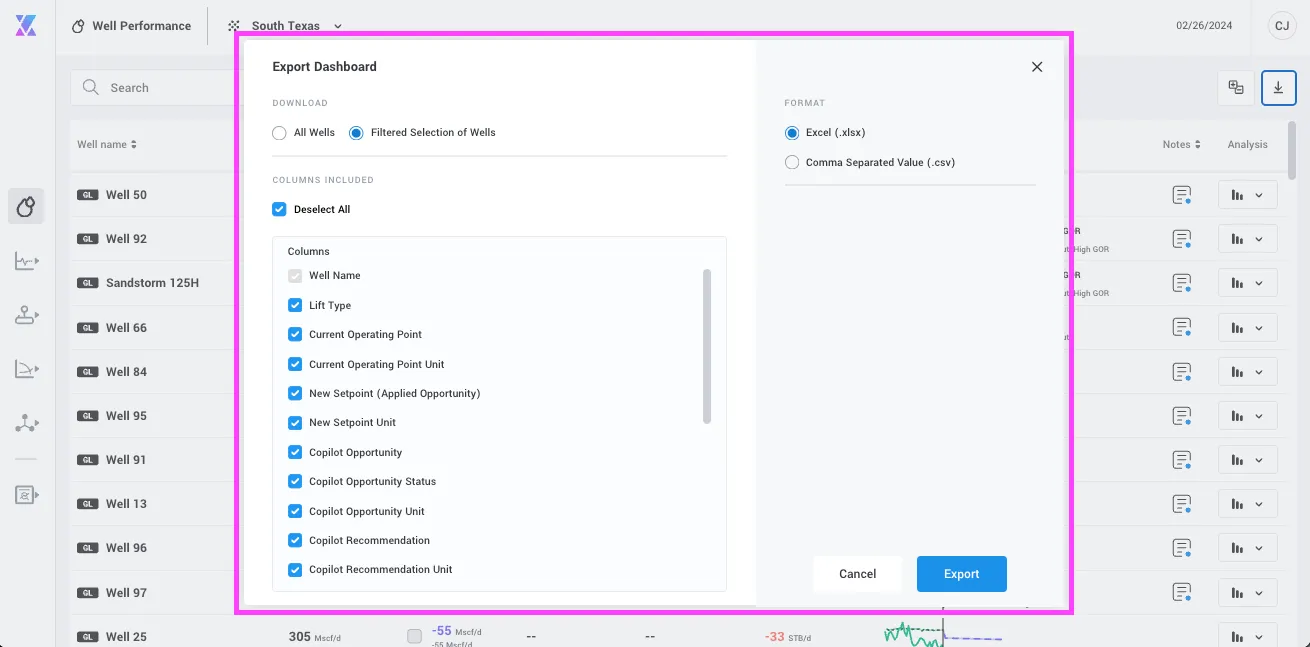

The download icon in the top right of the Well Performance Dashboard table allows you to export data from the dashboard. Aside from exporting raw data, this function also allows users to export accepted opportunities and the desired setpoint, which can be useful for sending changes to field personnel for implementation.

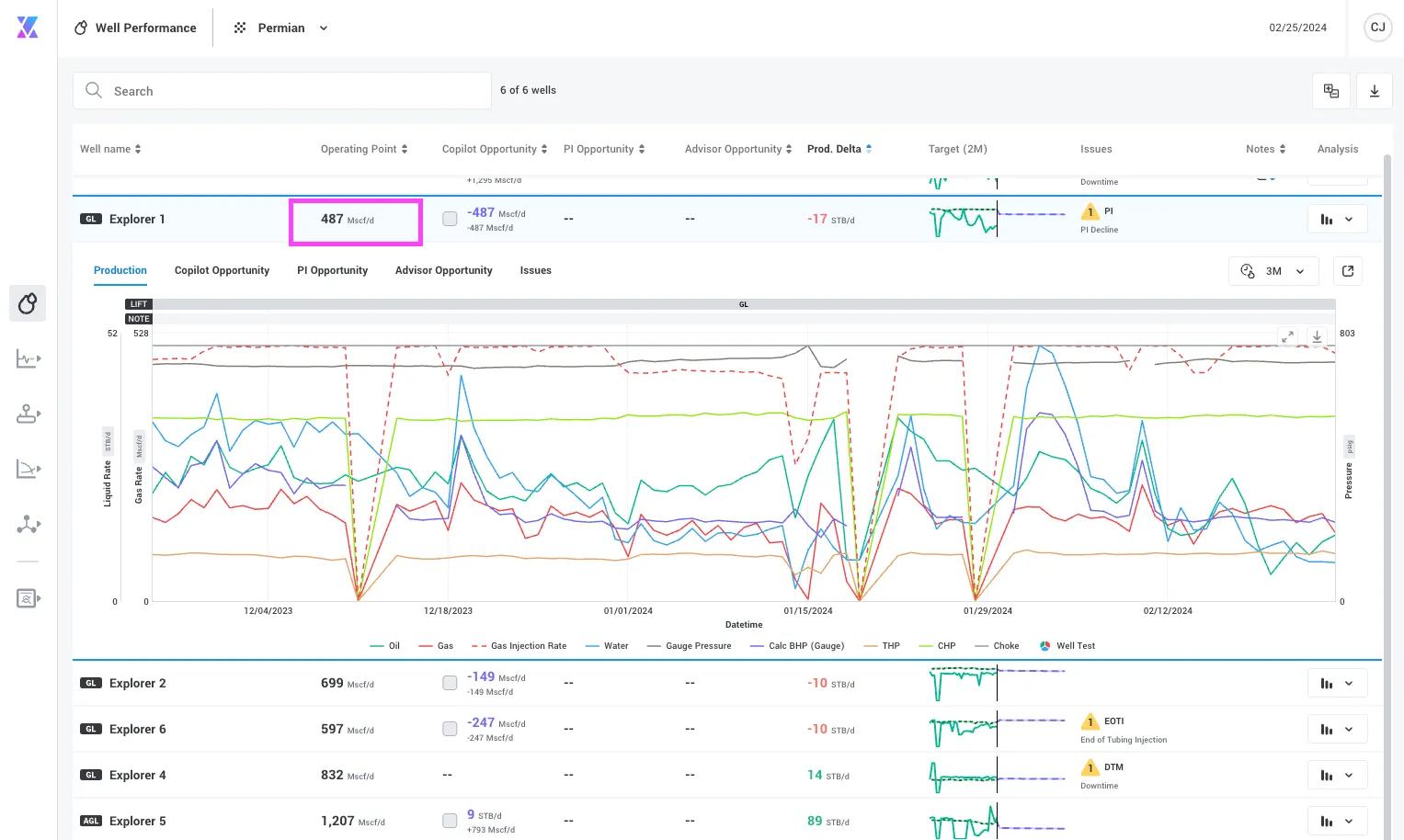

Clicking on any "cell" in the table will expand the row for that well allowing you to view quick diagnostics related to the selected item. Some examples include: daily production, ESP or Gas Lift performance curves, Advisor Scneario IPR/VLP and forecast comparison, and issue history.

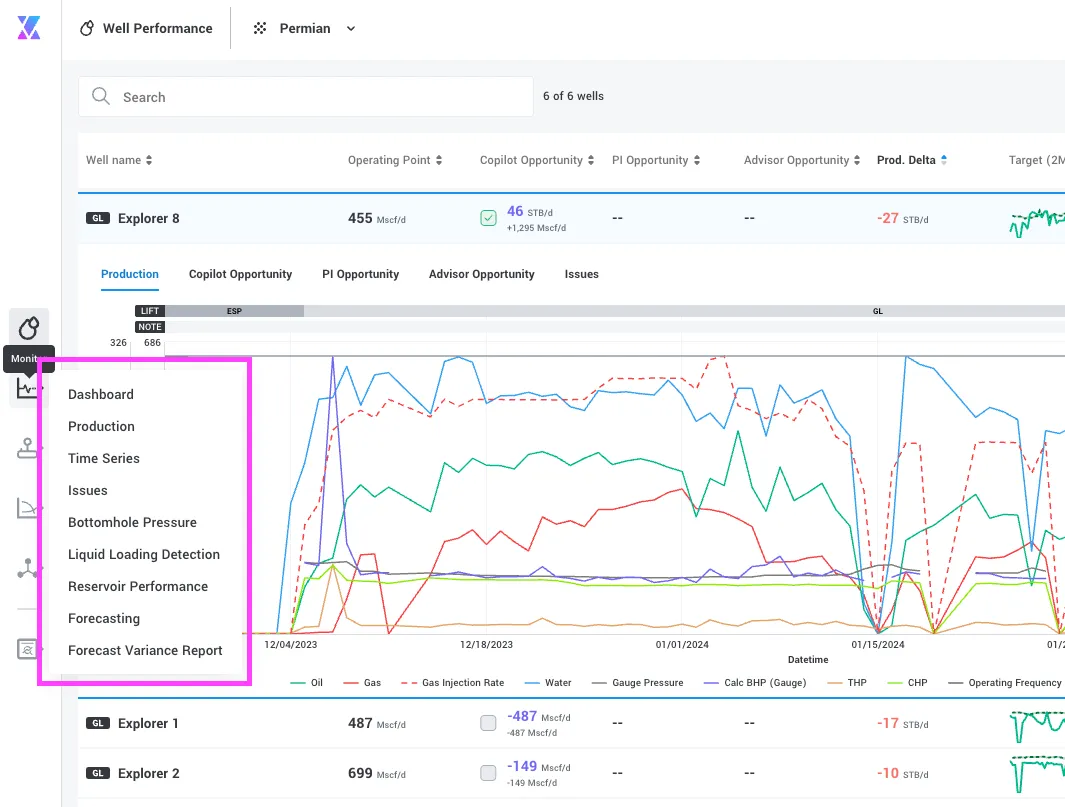

Hovering over the main menu allows you to quickly jump to any of the detailed well analysis screens.

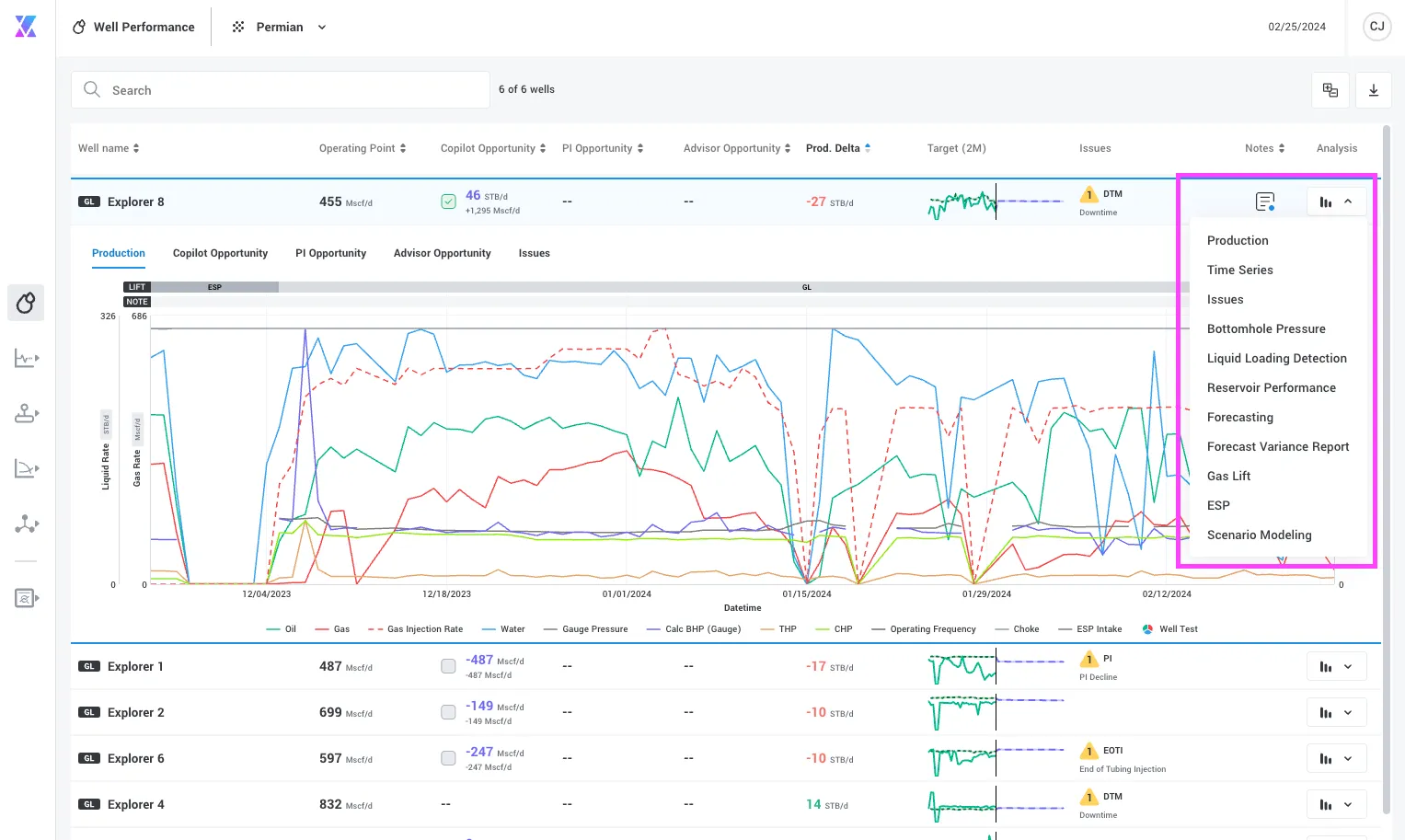

Additionally, clicking on any of the pages under the analysis dropdown will also navigate to well-level analysis screens.

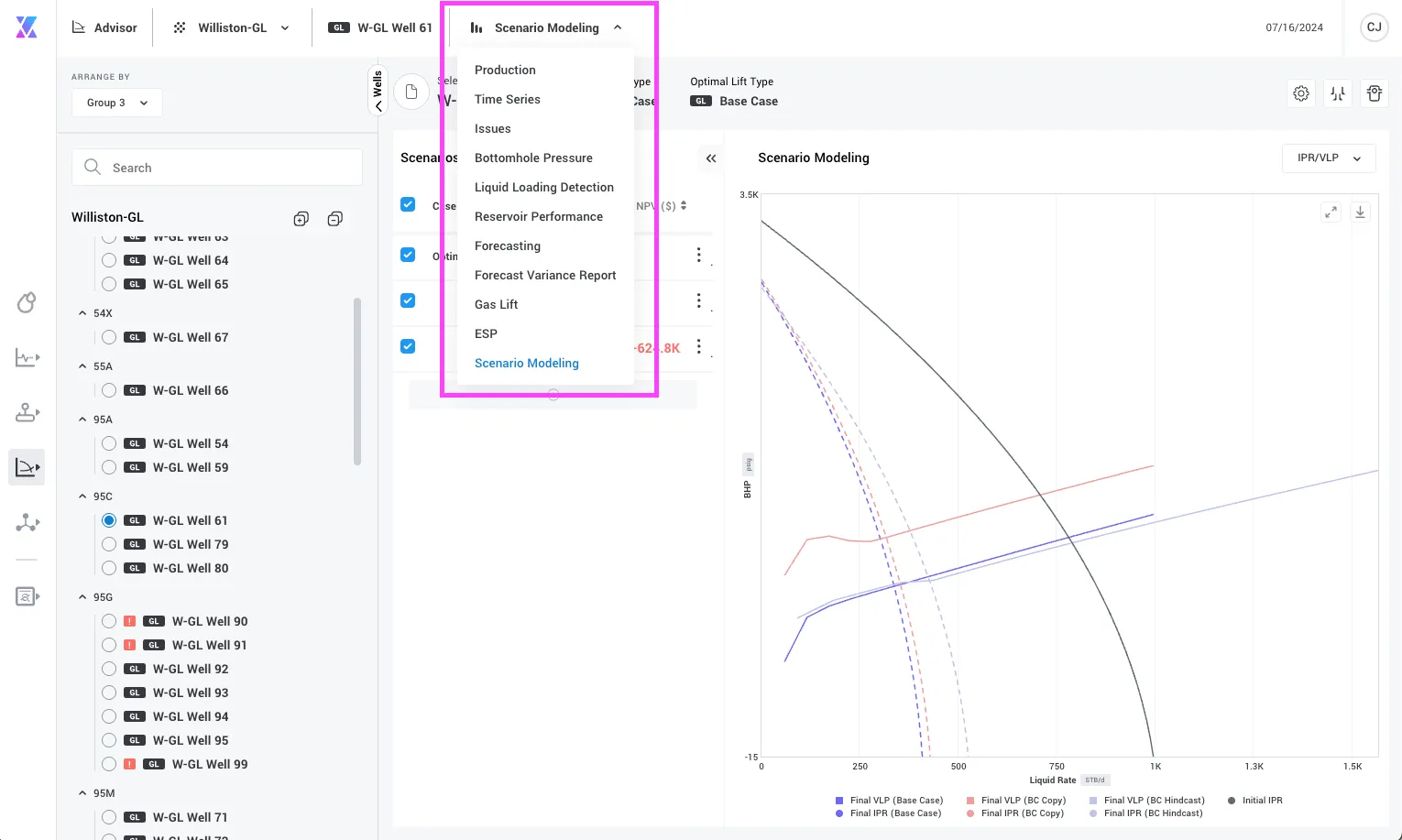

Inside the well level analysis screens, you can change the well with the well list on the left side of the screen (or collapse the well list to maximize screen space). You can change the group or the page at the top of the screen in the breadcrumb or via the main menu as shown below. More documenation on the individual screens can be found in the Monitor, Copilot, Advisor, and Network sections of the documentation.
