Liquid Loading Detection
The Liquid Loading Detection page shows daily critical rate values and liquid loading issues for the selected well. For general navigation, well selection, time range selection, chart functionality, wellbore diagram, or wellbore diagram information, see: General Navigation.
Liquid loading detection shows three linked charts
- Liquid Loading Critical Rates
- Rates
- Pressures

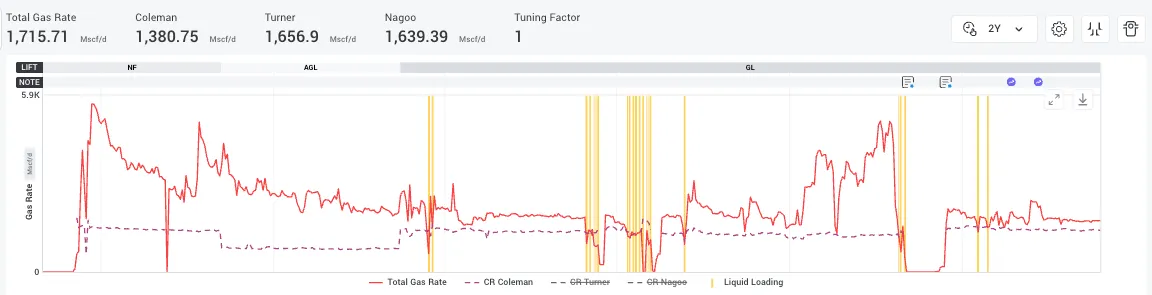

This chart shows the Total Gas Rate (Formation + Injection Gas), Liquid Loading Critical Rates (Coleman, Turner, and Nagoo), and Liquid Loading Flags (vertical plotlines).
By default, the only critical rate series that is visible is the one configured in the settings, but others can be unhidden for comparison purposes. It is important to note that the settings also contains a tuning factor which is reflected in the critical rates displayed on the chart. The configured tuning factor is also displayed on the KPI cards above the chart.

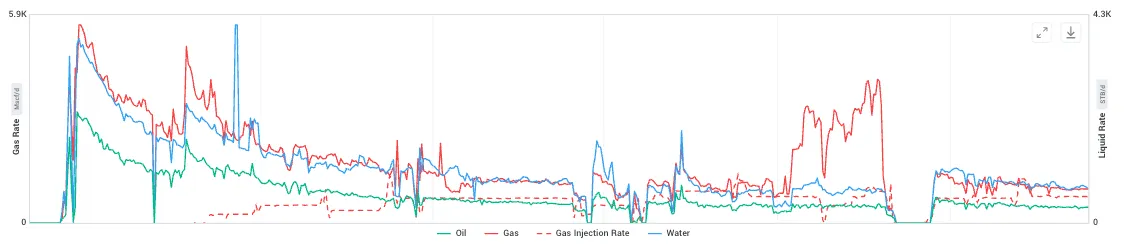

The rates chart shows the Oil Rate, Gas Rate, Gas Injection Rate, and Water Rate

The pressures chart shows Casing Head Pressure, Tubing Head Pressure, and Line Pressure

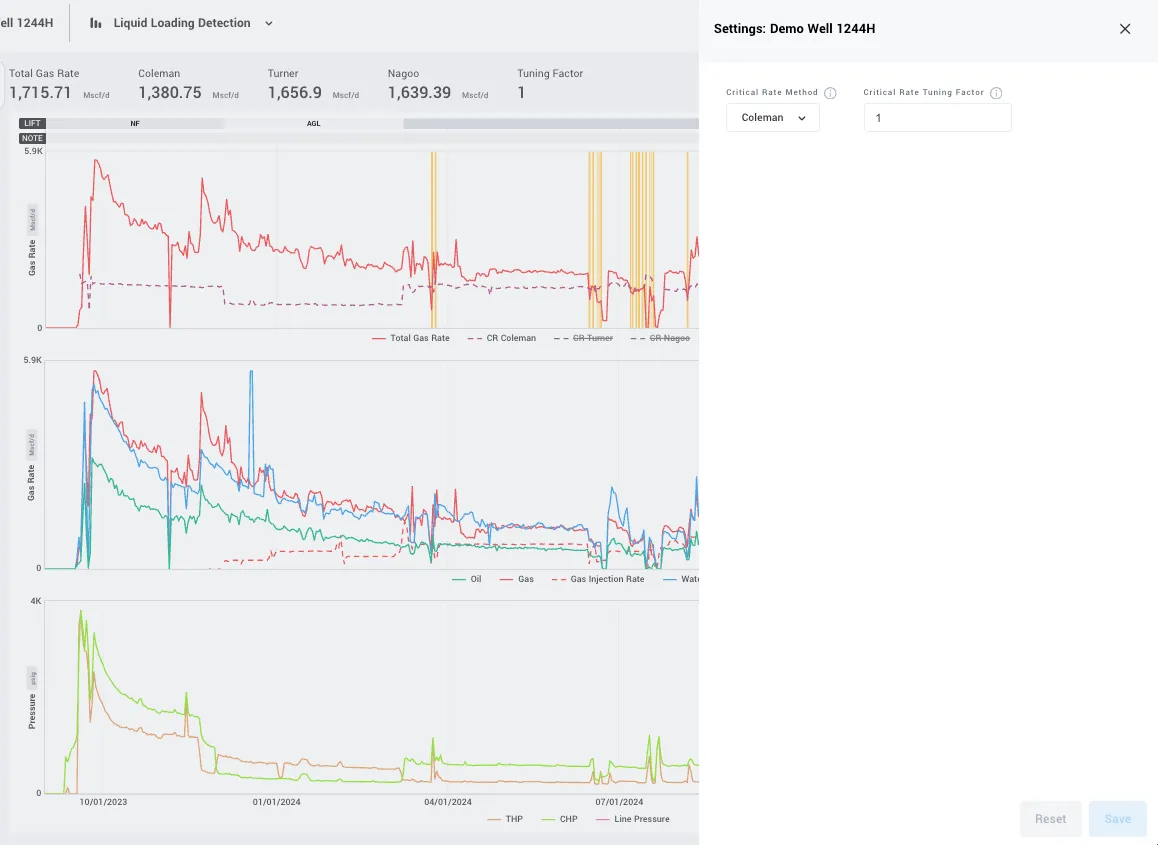

Model settings can be accessed by clicking the "gear" icon in the top right section of the page.
