Developer Docs
API Quick Start Tutorials

Python Tutorial

Author(s): Clark Chen and Kyle Vessey, November 2022

Developer Prerequisites:

  • mTLS Certificate, Client ID and Client Secret Key (tutorial)
  • Python v3.9+ (https://www.python.org/downloads/)
  • Pip (Latest Version) https://pypi.org/project/pip/
  • VS Code IDE (https://code.visualstudio.com/) or equivalent IDE
  • Internet connection

Data Schema: Please read the Data Schema Fundamentals document before using the API. Database CRUD operations are performed via the API and therefore it is important to think of each HTTP REST operation (POST/GET/DELETE) as SQL transaction (UPSERT/SELECT/DELETE)

Visualizing Data:

Data inserted or modified using this tutorial can be visualized using the web portal application(s) at https://app.onxecta.com. The portal contains a Data Quality Reporting tool where you can see what data is in the system, the validity of the data and when the data was last modified.

1 Create Project and Connect

1.1 Project Creation

Create New Project in VS Code

Create a new folder on your machine to begin building your project

Open the folder, and create a new Python file

Open Existing Project in VS Code

1.2 Install Xecta.Data.APIClient

Download latest Xecta.Data.API Client from PIP Package Manager

The Xecta Data API Client is hosted as a Python package in PyPi

To install the API Client, run the following command in your command prompt window:

Python
Python3
# If you do not have Python 2.7 installed, or you are on MacOS
# You may need to use the Python3 syntax for pip
pip3 install xecta-data-api-client


This will pull the compiled package from PyPi and install it on your machine.

Install and Configure SDK

To initialize and configure you project to include the SDK, follow this code sample

Python
from xecta_data_client.xecta_api import XectaApi

# Root URL
root_url = "https://data-sandbox.onxecta.com"
# Path to Signed CSR Certificate .pem file
signed_cert = "{LOCAL_PATH_TO_PEM}/xecta-data-api.pem"
# Path to Private Key
private_key = "{LOCAL_PATH_TO_PRIVATE_KEY}/xecta-data-api.key"

# Client ID
client_id = '{YOUR_CLIENT_ID}'
# Client Secret
client_secret = '{YOUR_CLIENT_SECRET}'

# Initialize the xecta api with the root url, certificate and key
xecta_api = XectaApi(root_url, signed_cert, private_key)

# Authenticating will return you a xecta api client.
api_client = xecta_api.authenticate(client_id, client_secret)


Error Initializing Certificate and Key: When calling the xecta_api.authenticate method, you must pass in the environment URL, signed certificate (xecta-data-api.pem), and your private key (xecta-data-api.key)

If you get an error message stating: [SSL: CERTIFICATE_VERIFY_FAILED], try the following fix:

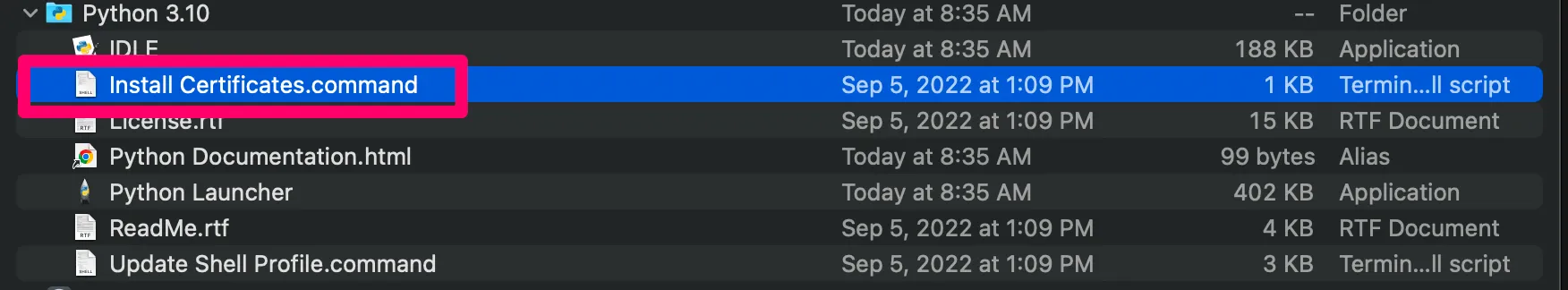

MacOS: Navigate to Macintosh HD > Applications > PythonX.X folder (where X is the version of Python you are using) > then double click on "Install Certificates.command" file

Install Certificates
Install Certificates


1.3 Pre-requisite - Dependent Python Libraries Installation

a) Required Python libraries - Pandas and Numpy

Python
pip install pandas
pip install numpy


b) Optional Python libraries - tqdm (For displaying progress bar of data processing)

Python
pip install tqdm


1.4 Import required Python Libraries and API Client

Python
## Import required Python libraries
import pandas as pd
import numpy as np
## Import optional Python libraries
from tqdm import tqdm
## Import required API client and API endpoints
from openapi_client import ApiException, ApiClient
from openapi_client.model.daily_production_input import DailyProductionInput
from openapi_client.model.daily_production import DailyProduction
from openapi_client.model.well_input import WellInput
from xecta_data_client.xecta_api import XectaApi
from openapi_client import ApiClient, Configuration
from openapi_client.exceptions import ApiTypeError, ApiValueError, ApiException
from openapi_client.model.deviation_survey import DeviationSurvey
from openapi_client.model.deviation_survey_input import DeviationSurveyInput
from openapi_client.model.wellbore import Wellbore
from openapi_client.model.wellbore_input import WellboreInput
from openapi_client.model.casing import Casing
from openapi_client.model.casing_input import CasingInput
from openapi_client.model.tubing import Tubing
from openapi_client.model.tubing_input import TubingInput
from openapi_client.model.formation import Formation
from openapi_client.model.formation_input import FormationInput


2 Well Headers

2.1 Insert or Upsert a Well Header

a) Data Preparation - Import well header from source data (.xlsx data demonstrated in this tutorial)

Python
## Import wellheader from source data
well_header = pd.read_excel(r'...\exampledata.xlsx',sheet_name='well')


b) Create a function to convert field names in camel case to snake case

  • This function will be used for other source data as well
Python
## Create a function to convert source data field names in camel case to snake case
def filed_name_conversion(str):
    return ''.join(['_'+i.lower() if i.isupper() else i for i in str]).lstrip('_')


c) Change field names and data type to be consistent with data schema

Python
## Convert source data field names in camel case to snake case
for name in well_header.columns:
    well_header.rename(columns={name : filed_name_conversion(name)},inplace=True)

## Convert NaN to Nonetype
well_header.replace({np.nan: None},inplace=True)

## Convert field 'uwi' and 'type' to str type
well_header['uwi'] = well_header['uwi'].apply(str)
well_header['type'] = well_header['type'].apply(str)

## Convert wellheader data to list form
well_header_input = well_header.to_dict(orient = 'records')


d) Upsert wellheader data to API client

Python
try:
    well_header_api = api_client.well_header_api()
    api_response = well_header_api.upsert_wells(well_header_input)
    ## Print API response when well header data was succesfully upserted
    print(api_response)
except ApiException as e:
  	## Print API response when error occured during upserting
    print("Exception when calling WellApi->upsert_wells: %s\n" % e)


Potential Error: Null values in non-nullable fields

Example: Null in field 'lat' will return error message when upserting

Document image


2.2 Get a Well Header Record

Python
## Specify Source ID to be queried
source_id = 'SPECIFY_YOUR_SOURCE_ID'
## Get Wellheader by Source ID
try:
    well_header_api = api_client.well_header_api()
    api_response = well_header_api.get_well_by_source(source_id)
		## Print API response when well header data was fetched
    print(api_response)
except ApiException as e:
		## Print API response when error occured during fetching
    print("Exception when calling WellApi->get_well_by_source: %s\n" % e)


2.3 Get All Well Header Records

Python
## Get all Wellheaders
try:
    well_header_api = api_client.well_header_api()
    api_response = well_header_api.get_wells()
		## Print API response when well header data was fetched
    print(api_response)
except ApiException as e:
		## Print API response when error occured during fetching
    print("Exception when calling WellApi->get_wells(): %s\n" % e)


2.4 Delete a Well Header Record

Python
## Specify Source ID to be deleted
source_id = 'SPECIFY_YOUR_SOURCE_ID'
## Delete Wellheader by Source ID
try:
    well_header_api = api_client.well_header_api()
    api_response = well_header_api.delete_well_by_source('source_id')
    ## Print API response when well header data was successfully deleted
    print(api_response)
except ApiException as e:
  	## Print API response when error occured during deleting
    print("Exception when calling WellApi->delete_well_by_source: %s\n" % e)


3 Daily Production

3.1 Insert or Upsert single Daily Production record

a) Create daily production input (Example data demonstrated)

Python
## Create example daily production record
daily_production = [
    DailyProductionInput(
        uwi = "well_uwi",
        date=datetime.datetime(2022, 9, 21, 20, 33, 4, 303441, tzinfo=tzutc()),
        oil_rate=12.33,
        gas_rate=12.33,
        water_rate=12.33,
        tubing_pressure=12.33,
        choke=1,
        gauge_pressure=12.33,
        wellhead_temperature=12.33,
        gauge_temperature=12.33,
        casing_pressure=12.33,
        gas_lift_injection_rate=12.33,
        esp_frequency=12.33,
        esp_intake_pressure=12.33,
        esp_amps=12.33,
        esp_volts=12.33,
        esp_discharge_pressure=12.33,
        esp_motor_temperature=12.33,
        esp_vibration=12.33,
        srp_strokes_per_min=12.33,
        downtime_hours=12.33,
        downtime_code="ST_1",
        water_injection_rate=12.33,
        gas_injection_rate=12.33,
    )]


b) Upsert daily production to API client

Python
try:
    daily_production_api = api_client.daily_production_api()
    response = daily_production_api.upsert_daily(daily_production)
    ## Print API response when daily production was successfully upserted
    print(response)
except ApiException as e:
  	## Print API response when error occurred during upserting
    print("Exception when calling DailyProductionApi->upsert_daily: %s\n" % e)

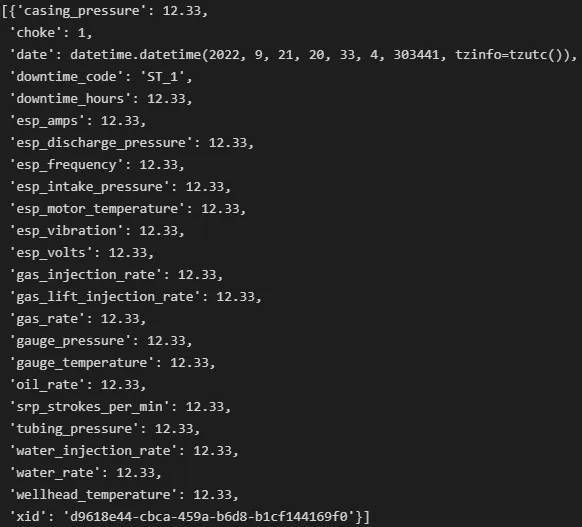

API response when upserted successfully



Document image

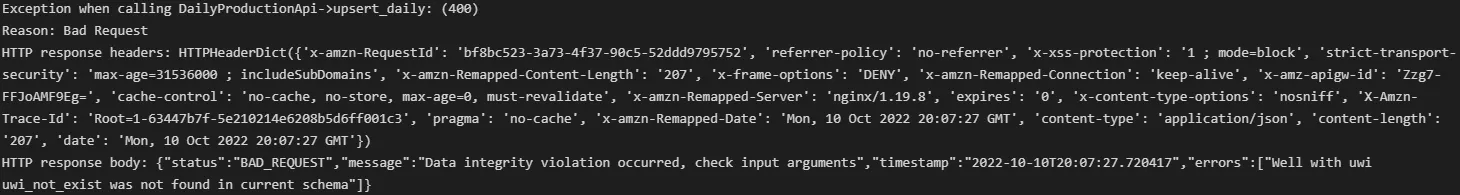

API response when error occurred (Example: uwi of upserted daily production doesn't exist in wellheader)



Document image


3.2 Insert a History of Daily Production (Multiple Records)

3.2.1 Daily Production Input Preparation

a) Import daily production from source data (.xlsx data demonstrated in this tutorial)

Python
## Import daily production from source data
dailyproduction = pd.read_excel(r'...\ExampleData.xlsx',sheet_name='dailyProduction')


b) Input data preparation - change field names and data type to be consistent with data schema

Python
## Convert NaN to Nonetype
dailyproduction.replace({np.nan: None},inplace=True)

## Maximum 30 characters allowed for 'downtimecode'
dailyproduction['downtimeCode'] = dailyproduction['downtimeCode'].str[:30]

## Convert datetime to UTC
dailyproduction['date'] = pd.to_datetime(dailyproduction['date'],utc=True)

## Convert 'uwi' to str type
dailyproduction['uwi'] = dailyproduction['uwi'].apply(str)

## Convert source data field names in camel case to snake case
for name in dailyproduction.columns:
    dailyproduction.rename(columns={name : filed_name_conversion(name)},inplace=True)

## Convert input data to list form
daily_production = dailyproduction.to_dict(orient = 'records')


3.2.2 Basic Method of upserting multiple records

Batch Processing:

In order to reduce the payload, it is recommended to upsert the daily production of each well in batches

Python
## Create a function to divide the daily production into batches for each well
def batch_file(df,batch_size):
  df_len = len(df)
  batches = [
  df[ix:ix+batch_size]
  for ix in range(0, df_len, batch_size)]
  return batches

Python
for uwi in tqdm(dailyproduction['uwi'].unique()):
    uwi_production = list(filter(lambda daily_production: daily_production['uwi'] == uwi, daily_production))
    batches = batch_file(uwi_production,1500)
    for batch in batches:
        try:
            daily_production_api = api_client.daily_production_api()
            response = daily_production_api.upsert_daily(batch)
        except ApiException as e:
            print("Exception when calling DailyProductionApi->upsert_daily: %s\n" % e)

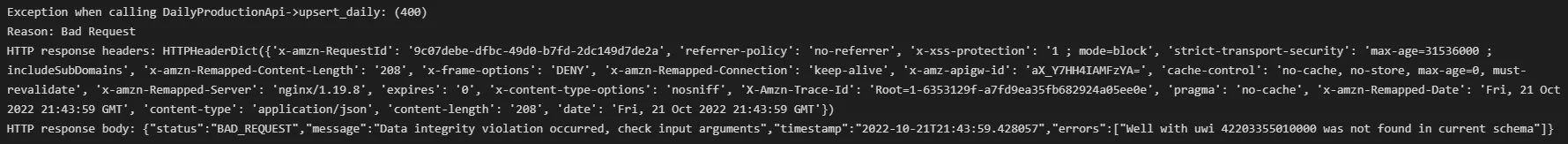

Potential Error: API response will return 400 error code when uwi of daily production doesn't exist in database

Document image


3.3 Get a Daily Production History

Python
## Get daily production
try:
    daily_production_api = api_client.daily_production_api()
    ## Query daily production of uwi: 'well_uwi'
    response = daily_production_api.get_daily('well_uwi')
    print(response)
except ApiException as e:
    print("Exception when calling DailyProductionApi->get_daily: %s\n" % e)


3.4 Remove a Daily Production Record

Python
## Delete daily production
try:
    daily_production_api = api_client.daily_production_api()
    ## Define datetime range for daily production (optional)
    start_date = datetime.datetime(1900, 9, 21, 20, 33, 4, 303441, tzinfo=tzutc())
    end_date = datetime.datetime(2022, 9, 21, 20, 33, 4, 303441, tzinfo=tzutc())
    response = daily_production_api.delete_daily(uwi,start_date = start_date,end_date = end_date)
    print(response)
except ApiException as e:
    print("Exception when calling DailyProductionApi->delete_daily: %s\n" % e)


If daily production has been successfully deleted, API response will return number of records which was just deleted.

(In this example 658 records were deleted)

Document image




If uwi doesn't exist in database, API response will return 400 error code.



Document image


4. Wellbore

4.1 Upsert a wellbore record

a) Data Preparation (Data import and format conversion)

Python
## Import wellbore data
wellbore = pd.read_excel(r'...\DataPlatformAPITemplate_By_SourceId.xlsx',sheet_name='wellbore')

## Convert source data field names in camel case to snake case
for name in wellbore.columns:
    wellbore.rename(columns={name : filed_name_conversion(name)},inplace=True)

## Replace Nan with None
wellbore.replace({np.nan: None},inplace=True)

## Convert wellbore data to list format
wellbore_input = wellbore.to_dict(orient='records')


b) Upsert wellbore record

Python
# Batch Upsert
batches = batch_file(wellbore,100)

for batch in tqdm(batches):
    wellbore_input = batch.to_dict(orient='records')
    try:
        wellbore_api = api_client.wellbore_api()
        response = wellbore_api.upsert_wellbores(wellbore_input)
        #print(response)
    except ApiException as e:
        print("Exception when calling WellboreApi->upsert_wellbores: %s\n" % e)


4.2 Get a wellbore record

4.2.1 Get Wellbore Record by Source Well ID

Python
## Define Source Well ID to be queried
source_well_id = 'testSourceWellId'
## Get Wellbore By Well
try:
    wellbore_api = api_client.wellbore_api()
    response = wellbore_api.get_wellbores_by_source_well(source_well_id)
    print(response)
except ApiException as e:
    print("Exception when calling WellboreApi->get_wellbores_by_source_well: %s\n" % e)


4.2.2 Get Wellbore Record by Source Well ID and Source Wellbore ID

Python
## Define Source Well ID and Source Wellbore ID to be queried
source_well_id = 'testSourceWellId'
source_wellbore_id = 'testSourceWellboreId'
## Get Wellbore By Source
try:
    wellbore_api = api_client.wellbore_api()
    response = wellbore_api.get_wellbor_by_source(source_well_id,source_wellbore_id)
    print(response)
except ApiException as e:
    print("Exception when calling WellboreApi->get_wellbore_by_source: %s\n" % e)


4.3 Delete a wellbore record by Source Well ID

Python
## Define Source ID to be queried
source_well_id = 'testSourceWellId'
## Delete Wellbore
try:
    wellbore_api = api_client.wellbore_api()
    response = wellbore_api.delete_wellbore_by_source_well(source_well_id)
    print(response)
except ApiException as e:
    print("Exception when calling WellboreApi->delete_wellbore_by_source_well: %s\n" % e)


4.4 Delete a wellbore record by Source Well ID and Source Wellbore ID

Python
## Define Source Well ID and Source Wellbore ID to be queried
source_well_id = 'testSourceWellId'
source_wellbore_id = 'testSourceWellboreId'
## Delete Wellbore
try:
    wellbore_api = api_client.wellbore_api()
    response = wellbore_api.delete_wellbore_by_source(source_well_id,source_wellbore_id)
    print(response)
except ApiException as e:
    print("Exception when calling WellboreApi->delete_wellbore_by_source: %s\n" % e)


5 Deviation Survey

5.1 Upsert deviation survey

a) Data preparation (Data import and formation conversion)

Python
## Import deviation survey data
deviationsurvey = pd.read_excel(r'...\DataPlatformAPITemplate_By_SourceId.xlsx',sheet_name='wellboreDeviationSurvey')

## Convert source data field names in camel case to snake case
for name in deviationsurvey.columns:
    deviationsurvey.rename(columns={name : filed_name_conversion(name)},inplace=True)

## Replace NaN with None
deviationsurvey.replace({np.nan: None},inplace=True)

## Convert survey data to list
deviationsurveyinput = deviationsurvey.to_dict(orient='records')


b) Upsert deviation survey

Python
## Upsert Survey
try:
    deviation_survey_api = api_client.deviation_survey_api()
    response = deviation_survey_api.upsert_deviation_surveys(deviationsurveyinput)
    print(response)
except ApiException as e:
    print("Exception when calling DeviationSurveyApi->upsert_deviation_surveys: %s\n" % e)


5.2 Get Deviation Survey

5.2.1 Get Deviation Survey by Source Well ID

Python
## Define Source ID to be queried
source_well_id = 'testSourceSurveySourceWellID'
## Get Survey
try:
    deviation_survey_api = api_client.deviation_survey_api()
    response = deviation_survey_api.get_deviation_survey_by_source_well(source_well_id)
    print(response)
except ApiException as e:
    print("Exception when calling DeviationDurveyApi->get_deviation_survey_by_source_well: %s\n" % e)


5.2.2 Get Deviation Survey by Source Well ID and Source Wellbore ID

Python
## Define Source Well ID and Source Wellbore ID to be queried
source_well_id = 'testSourceSurveySourceWellID'
source_wellbore_id = 'testSourceSurveySourceWellboreID'
## Get Survey
try:
    deviation_survey_api = api_client.deviation_survey_api()
    response = deviation_survey_api.get_deviation_survey_by_source_wellbore(source_well_id,source_wellbore_id)
    print(response)
except ApiException as e:
    print("Exception when calling DeviationDurveyApi->get_deviation_survey_by_source_wellbore: %s\n" % e)


5.2.3 Get Deviation Survey by Source

Python
## Define Source Wellbore ID to be queried
source_well_id = 'testSourceSurveySourceWellID'
source_wellbore_id = 'testSourceSurveySourceWellboreID'
source_id = 'testSourceSurveySourceID'
## Get Survey
try:
    deviation_survey_api = api_client.deviation_survey_api()
    response = deviation_survey_api.get_deviation_survey_by_source(source_well_id,source_wellbore_id,source_id)
    print(response)
except ApiException as e:
    print("Exception when calling DeviationDurveyApi->get_deviation_survey_by_source: %s\n" % e)


5.3 Delete Deviation Survey

5.3.1 Delete Deviation Survey by Source Well ID

Python
## Define source well id to be queried
source_well_id = 'testSourceSurveySourceWellID'
## Delete Survey
try:
    deviation_survey_api = api_client.deviation_survey_api()
    response = deviation_survey_api.delete_deviation_surveys_by_source_well(source_well_id)
    print(response)
except ApiException as e:
    print("Exception when calling DeviationDurveyApi->delete_deviation_surveys_by_source_well: %s\n" % e)


5.3.2 Delete Deviation Survey by Source Well ID and Source Wellbore ID

Python
## Define source well ID and source wellbore ID to be queried
source_well_id = 'testSourceSurveySourceWellID'
source_wellbore_id = 'testSourceSurveySourceWellboreID'
## Delete Survey
try:
    deviation_survey_api = api_client.deviation_survey_api()
    response = deviation_survey_api.delete_deviation_surveys_by_source_wellbore(source_well_id,source_wellbore_id)
    print(response)
except ApiException as e:
    print("Exception when calling DeviationDurveyApi->delete_deviation_surveys_by_source_wellbore: %s\n" % e)


5.3.3 Delete Deviation Survey by Source

Python
## Define source well ID and source wellbore ID to be queried
source_well_id = 'testSourceSurveySourceWellID'
source_wellbore_id = 'testSourceSurveySourceWellboreID'
source_id = 'testSourceSurveySourceID'
## Delete Survey
try:
    deviation_survey_api = api_client.deviation_survey_api()
    response = deviation_survey_api.delete_deviation_survey_by_source(source_well_id,source_wellbore_id,source_id)
    print(response)
except ApiException as e:
    print("Exception when calling DeviationDurveyApi->delete_deviation_survey_by_source: %s\n" % e)


6 Casing

6.1 Upsert Casing Records

a) Data Preparation (Data import and data format conversion)

Python
## Import casing data from local excel file
casing = pd.read_excel(r'...\DataPlatformAPITemplate_By_SourceId.xlsx',sheet_name='wellboreCasing')

## Convert source data field names in camel case to snake case
for name in casing.columns:
    casing.rename(columns={name : filed_name_conversion(name)},inplace=True)

## Replace NaN with None
casing.replace({np.nan: None},inplace=True)

## Convert Run Date data type
casing['run_date'] = pd.to_datetime(casing['run_date'],utc=True)

## Convert casing data to list
casing_input = casing.to_dict(orient='records')


b) Upsert casing data

Python
## Upsert Casing
try:
    casing_api = api_client.wellbore_casing_api()
    response = casing_api.upsert_casing(casing_input)
    print(response)
except ApiException as e:
    print("Exception when calling CasginApi->upsert_casing: %s\n" % e)


6.2 Get casing record

6.2.1 Get Casing Record by Source Well ID

Python
## Define the source well ID to be queried
source_well_id = 'sourceWellID'
## Get Casing Record by Source ID
try:
    casing_api = api_client.wellbore_casing_api()
    response = casing_api.get_casing_by_source_well(source_well_id)
    print(response)
except ApiException as e:
    print("Exception when calling CasingApi->get_casing_by_source_well: %s\n" % e)


6.2.2 Get Casing Record by Source Well ID and Source Wellbore ID

Python
## Define the source ID to be queried
source_well_id = 'sourceWellID'
source_wellbore_id = 'sourceWellboreID'
## Get Casing
try:
    casing_api = api_client.wellbore_casing_api()
    response = casing_api.get_casing_by_source_wellbore(source_well_id,source_wellbore_id)
    print(response)
except ApiException as e:
    print("Exception when calling CasingApi->get_casing_by_source_wellbore: %s\n" % e)


6.2.3 Get Casing Record by Source

Python
## Define the source ID to be queried
source_well_id = 'sourceWellID'
source_wellbore_id = 'sourceWellboreID'
source_id = 'sourceID'
## Get Casing
try:
    casing_api = api_client.wellbore_casing_api()
    response = casing_api.get_casing_by_source(source_well_id,source_wellbore_id,source_id)
    print(response)
except ApiException as e:
    print("Exception when calling CasingApi->get_casing_by_source: %s\n" % e)


6.3 Delete Casing Records

6.3.1 Delete Casing Records by Source Well ID

Python
## Define source ID to be deleted
source_well_id = 'sourceWellID'
## Delete Casing
try:
    casing_api = api_client.wellbore_casing_api()
    response = casing_api.delete_casing_by_source_well(source_well_id)
    print(response)
except ApiException as e:
    print("Exception when calling CasingApi->delete_casing_by_source_well: %s\n" % e)


6.3.2 Delete Casing Records by Source Wellbore ID

Python
## Define source ID to be deleted
source_well_id = 'sourceWellID'
source_wellbore_id = 'sourceWellboreID'
## Delete Casing
try:
    casing_api = api_client.wellbore_casing_api()
    response = casing_api.delete_casing_by_source_wellbore(source_well_id,source_wellbore_id)
    print(response)
except ApiException as e:
    print("Exception when calling CasingApi->delete_casing_by_source_wellbore: %s\n" % e)


6.3.2 Delete Casing Records by Source

Python
## Define source ID to be deleted
source_well_id = 'sourceWellID'
source_wellbore_id = 'sourceWellboreID'
source_id = 'sourceID'
## Delete Casing
try:
    casing_api = api_client.wellbore_casing_api()
    response = casing_api.delete_casing_by_source(source_well_id,source_wellbore_id,source_id)
    print(response)
except ApiException as e:
    print("Exception when calling CasingApi->delete_casing_by_source: %s\n" % e)


7 Tubing

7.1 Upsert Tubing Records

a) Data preparation (Data import and data format conversion)

Python
## Import tubing data from local excel file
tubing = pd.read_excel(r'...\DataPlatformAPITemplate_By_SourceId.xlsx',sheet_name='wellboreTubing')

## Convert source data field names in camel case to snake case
for name in tubing.columns:
    tubing.rename(columns={name : filed_name_conversion(name)},inplace=True)

## Replace NaN with None
tubing.replace({np.nan: None},inplace=True)

## Convert tubing data to list
tubing_input = tubing.to_dict(orient='records')


b) Upsert tubing records

Python
## Upsert Tubing
try:
    tubing_api = api_client.wellbore_tubing_api()
    response = tubing_api.upsert_tubing(tubing_input)
    print(response)
except ApiException as e:
    print("Exception when calling TubingApi->upsert_tubing: %s\n" % e)


7.2 Get Tubing Records

7.2.1 Get Tubing Records by Source Well ID

Python
## Define the source ID to be queried
source_well_id = 'sourceWellID'
## Get Tubing Record by Source ID
try:
    tubing_api = api_client.wellbore_tubing_api()
    response = tubing_api.get_tubing_for_source_well(source_well_id)
    print(response)
except ApiException as e:
    print("Exception when calling TubingApi->get_tubing_for_source_well: %s\n" % e)


7.2.2 Get Tubing Records by Source Well ID and Source Wellbore ID

Python
## Define the source well ID to be queried
source_well_id = 'sourceWellID'
source_wellbore_id = 'sourceWellboreID'
## Get Tubing Record by source well ID
try:
    tubing_api = api_client.wellbore_tubing_api()
    response = tubing_api.get_tubing_for_source_wellbore(source_well_id,source_wellbore_id)
    print(response)
except ApiException as e:
    print("Exception when calling TubingApi->get_tubing_for_source_wellbore: %s\n" % e)


7.2.3 Get Tubing Records by Source

Python
## Define the source well ID to be queried
source_well_id = 'sourceWellID'
source_wellbore_id = 'sourceWellboreID'
source_id = 'sourceID'
## Get Tubing Record by Source Wellbore ID
try:
    tubing_api = api_client.wellbore_tubing_api()
    response = tubing_api.get_tubing_by_source(source_well_id,source_wellbore_id,source_id)
    print(response)
except ApiException as e:
    print("Exception when calling TubingApi->get_tubing_by_source: %s\n" % e)


7.3 Delete Tubing Records

7.3.1 Delete Tubing Records by Source Well ID

Python
## Specify source ID to be deleted
source_well_id = 'sourceWellID'
## Delete Tubing
try:
    wellbore_tubing_api = api_client.wellbore_tubing_api()
    response = wellbore_tubing_api.delete_tubing_by_source_well(source_well_id)
(source_well_id)
    print(response)
except ApiException as e:
    print("Exception when calling DailyProductionApi->delete_tubing_by_source_well: %s\n" % e)


7.3.2 Delete Tubing Records by Source Well ID and Source Wellbore ID

Python
## Specify source ID to be deleted
source_well_id = 'sourceWellID'
source_wellbore_id = 'sourceWellboreID'
## Delete Tubing
try:
    wellbore_tubing_api = api_client.wellbore_tubing_api()
    response = wellbore_tubing_api.delete_tubing_by_source_wellbore(source_well_id,source_wellbore_id)
    print(response)
except ApiException as e:
    print("Exception when calling DailyProductionApi->delete_tubing_by_source_wellbore: %s\n" % e)


7.3.3 Delete Tubing Records by Source

Python
## Specify source ID to be deleted
source_well_id = 'sourceWellID'
source_wellbore_id = 'sourceWellboreID'
source_id = 'sourceID'
## Delete Tubing
try:
    wellbore_tubing_api = api_client.wellbore_tubing_api()
    response = wellbore_tubing_api.delete_tubing_by_source(source_well_id,source_wellbore_id,source_id)
    print(response)
except ApiException as e:
    print("Exception when calling DailyProductionApi->delete_tubing_by_source: %s\n" % e)


8 Formation

8.1 Upsert Formation

a) Data Preparation (Data import and formation conversion)

Python
## Import Formation Data from excel file
formation = pd.read_excel(r'...\DataPlatformAPITemplate_By_SourceId.xlsx',sheet_name='wellboreFormation')

## Replace NaN with None
formation.replace({np.nan: None},inplace=True)

## Convert source data field names in camel case to snake case
for name in formation.columns:
    formation.rename(columns={name : filed_name_conversion(name)},inplace=True)

## Change Attribute names
formation.rename(columns={"fluid_comingled_g_o_r":"fluid_comingled_gor","fluid_molar_frac_c_o2":"fluid_molar_frac_co2"},inplace = True)

## Convert formation data to list
formation_input = formation.to_dict(orient='records')


b) Upsert formation

Python
## Upsert Formation
try:
    formation_property_api = api_client.wellbore_formation_api()
    response = formation_property_api.upsert_formations(formation_input)
    print(response)
except ApiException as e:
    print("Exception when calling FormationApi->upsert_formations: %s\n" % e)


8.2 Get formation

8.2.1 Get formation by source well ID

Python
## Specify Source Wellbore ID
source_well_id = 'sourceWellID'
## Get Formation
try:
    formation_property_api = api_client.wellbore_formation_api()
    response = formation_property_api.get_formations_by_well(source_well_id)
    print(response)
except ApiException as e:
    print("Exception when calling FormationApi->get_formations_by_well: %s\n" % e)


8.2.2 Get formation by source wellbore ID

Python
## Specify Source Wellbore ID
source_well_id = 'sourceWellID'
source_wellbore_id = 'sourceWellboreID'
## Get Formation
try:
    formation_property_api = api_client.wellbore_formation_api()
    response = formation_property_api.get_formations_by_wellbore(source_well_id,source_wellbore_id)
    print(response)
except ApiException as e:
    print("Exception when calling FormationApi->get_formations_by_wellbore: %s\n" % e)


8.3 Delete formation

8.3.1 Delete formation by source well ID

Python
## Specify Source Wellbore ID
source_well_id = 'sourceWellID'
## Delete Formation
try:
    formation_property_api = api_client.wellbore_formation_api()
    response = formation_property_api.delete_formations_by_source_well(source_well_id)
    print(response)
except ApiException as e:
    print("Exception when calling FormationApi->delete_formations_by_source_well: %s\n" % e)


8.3.2 Delete formation by source wellbore ID

Python
## Specify Source Wellbore ID
source_well_id = 'sourceWellID'
source_wellbore_id = 'sourceWellboreID'
## Delete Formation
try:
    formation_property_api = api_client.wellbore_formation_api()
    response = formation_property_api.delete_formation_by_source_wellbore(source_well_id,source_wellbore_id)
    print(response)
except ApiException as e:
    print("Exception when calling FormationApi->delete_formation_by_source_wellbore: %s\n" % e)




Updated 01 Jun 2023
Did this page help you?
PREVIOUS
Postman Tutorial
NEXT
C# Tutorial
Docs powered by Archbee
TABLE OF CONTENTS
1 Create Project and Connect
1.1 Project Creation
Create New Project in VS Code
Open Existing Project in VS Code
1.2 Install Xecta.Data.APIClient
Download latest Xecta.Data.API Client from PIP Package Manager
Install and Configure SDK
1.3 Pre-requisite - Dependent Python Libraries Installation
1.4 Import required Python Libraries and API Client
2 Well Headers
2.1 Insert or Upsert a Well Header
2.2 Get a Well Header Record
2.3 Get All Well Header Records
2.4 Delete a Well Header Record
3 Daily Production
3.1 Insert or Upsert single Daily Production record
3.2 Insert a History of Daily Production (Multiple Records)
3.2.1 Daily Production Input Preparation
3.2.2 Basic Method of upserting multiple records
3.3 Get a Daily Production History
3.4 Remove a Daily Production Record
4. Wellbore
4.1 Upsert a wellbore record
4.2 Get a wellbore record
4.2.1 Get Wellbore Record by Source Well ID
4.2.2 Get Wellbore Record by Source Well ID and Source Wellbore ID
4.3 Delete a wellbore record by Source Well ID
4.4 Delete a wellbore record by Source Well ID and Source Wellbore ID
5 Deviation Survey
5.1 Upsert deviation survey
5.2 Get Deviation Survey
5.2.1 Get Deviation Survey by Source Well ID
5.2.2 Get Deviation Survey by Source Well ID and Source Wellbore ID
5.2.3 Get Deviation Survey by Source
5.3 Delete Deviation Survey
5.3.1 Delete Deviation Survey by Source Well ID
5.3.2 Delete Deviation Survey by Source Well ID and Source Wellbore ID
5.3.3 Delete Deviation Survey by Source
6 Casing
6.1 Upsert Casing Records
6.2 Get casing record
6.2.1 Get Casing Record by Source Well ID
6.2.2 Get Casing Record by Source Well ID and Source Wellbore ID
6.2.3 Get Casing Record by Source
6.3 Delete Casing Records
6.3.1 Delete Casing Records by Source Well ID
6.3.2 Delete Casing Records by Source Wellbore ID
6.3.2 Delete Casing Records by Source
7 Tubing
7.1 Upsert Tubing Records
7.2 Get Tubing Records
7.2.1 Get Tubing Records by Source Well ID
7.2.2 Get Tubing Records by Source Well ID and Source Wellbore ID
7.2.3 Get Tubing Records by Source
7.3 Delete Tubing Records
7.3.1 Delete Tubing Records by Source Well ID
7.3.2 Delete Tubing Records by Source Well ID and Source Wellbore ID
7.3.3 Delete Tubing Records by Source
8 Formation
8.1 Upsert Formation
8.2 Get formation
8.2.1 Get formation by source well ID
8.2.2 Get formation by source wellbore ID
8.3 Delete formation
8.3.1 Delete formation by source well ID
8.3.2 Delete formation by source wellbore ID
Docs powered by Archbee
