Model Quality
The model quality section of ProdX has two pages:
- Data Quality - Analyze data quality and integrity by drilling down into specific datasets to understand errors and warnings
- Model Settings - Change model settings by well or in bulk

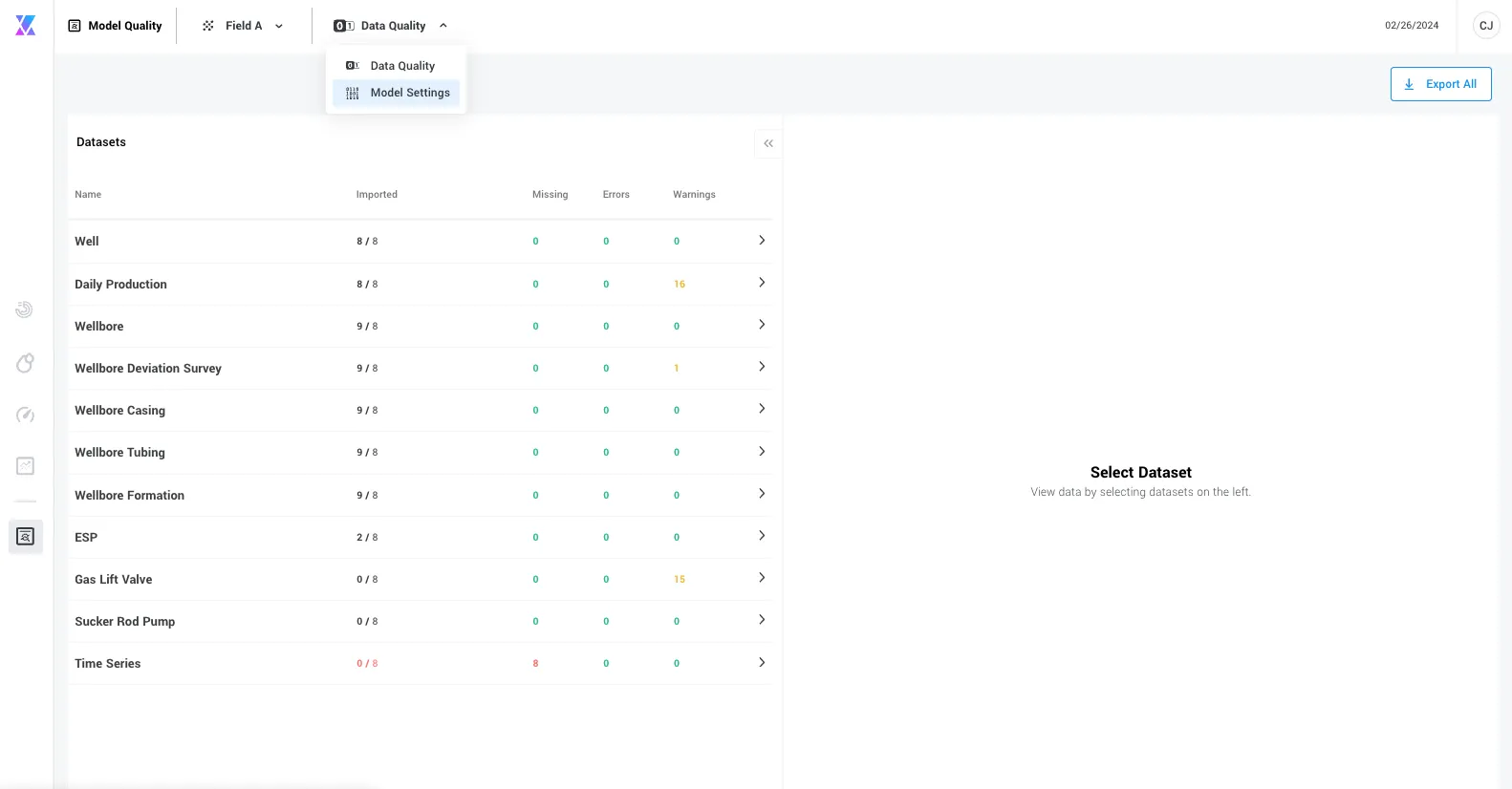

Inside the model quality section of the application, you can change groups or pages with the breadcrumb at the top of the screen.

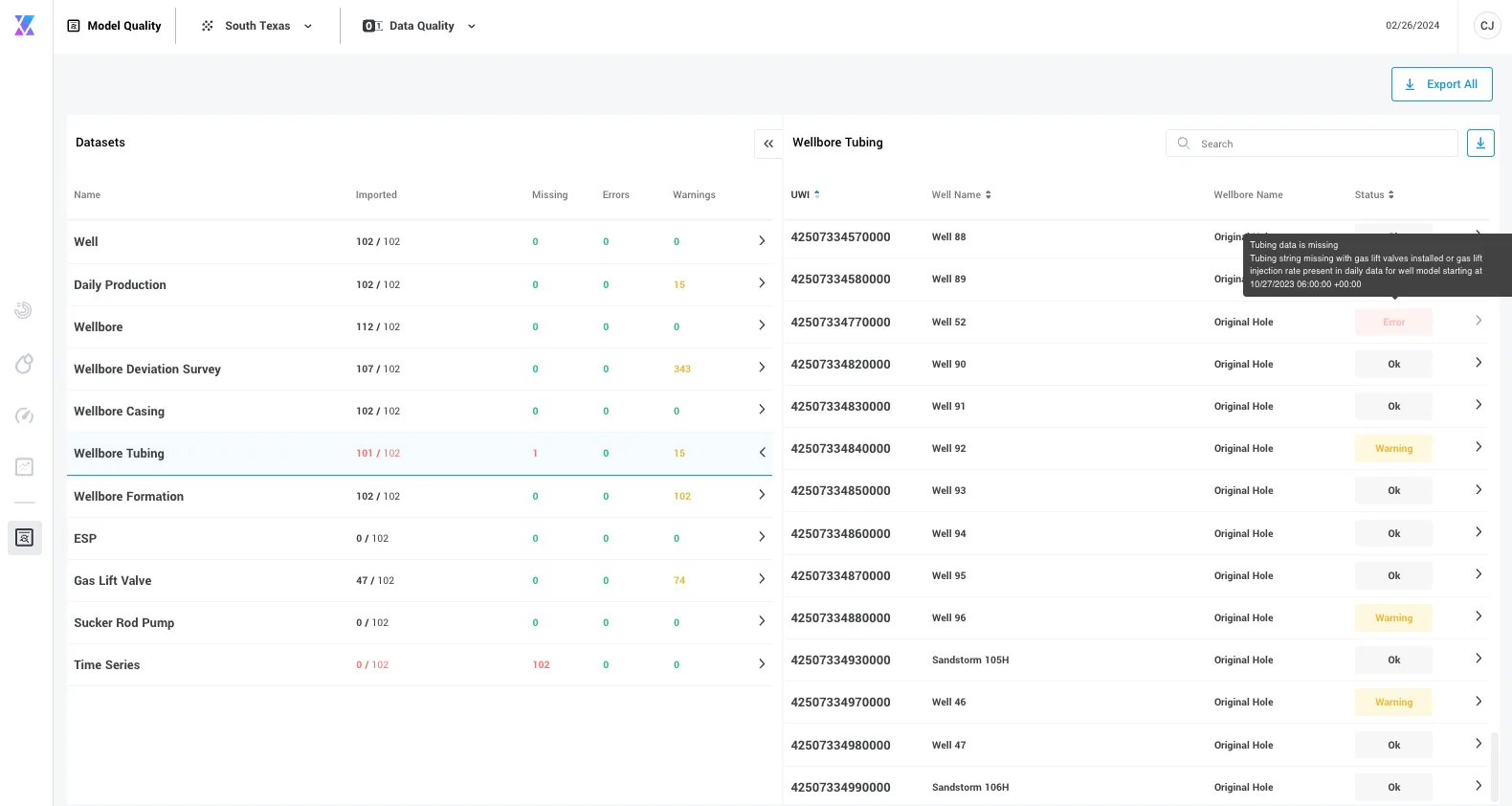

The data quality page breaks down import counts by dataset as well as summaries of missing data, errors (models will fail), or warnings (model quality may be impacted). By clicking on a dataset, you can drill down into a well-by-well breakdown of the quality. Hovering over the badge in the status column will give you specific information about an error or warning.

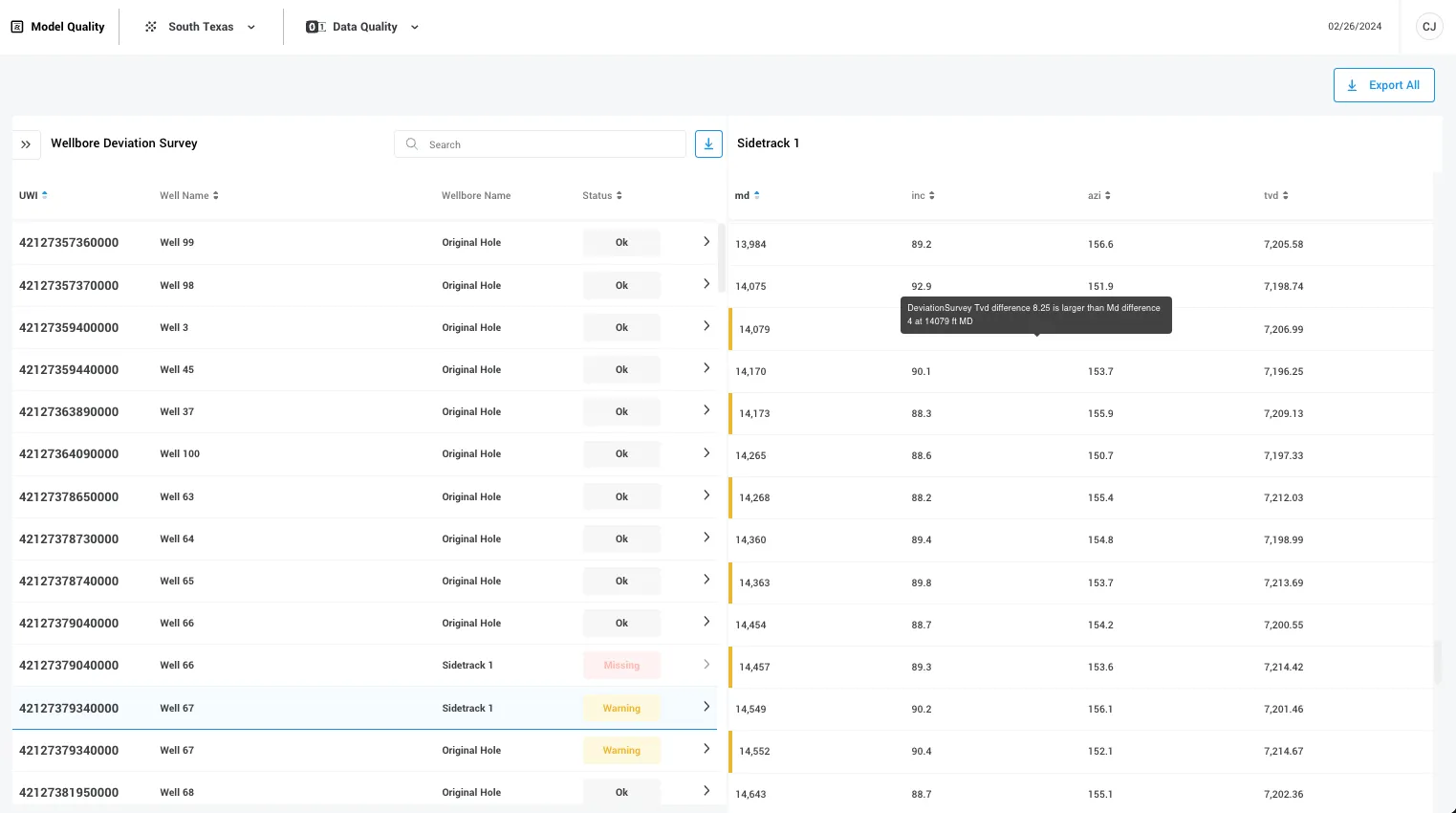

Clicking on a specific well on the right side will further drill into the data set to see the raw data imported for that well with specific fields highlighted if errors or warnings exist.

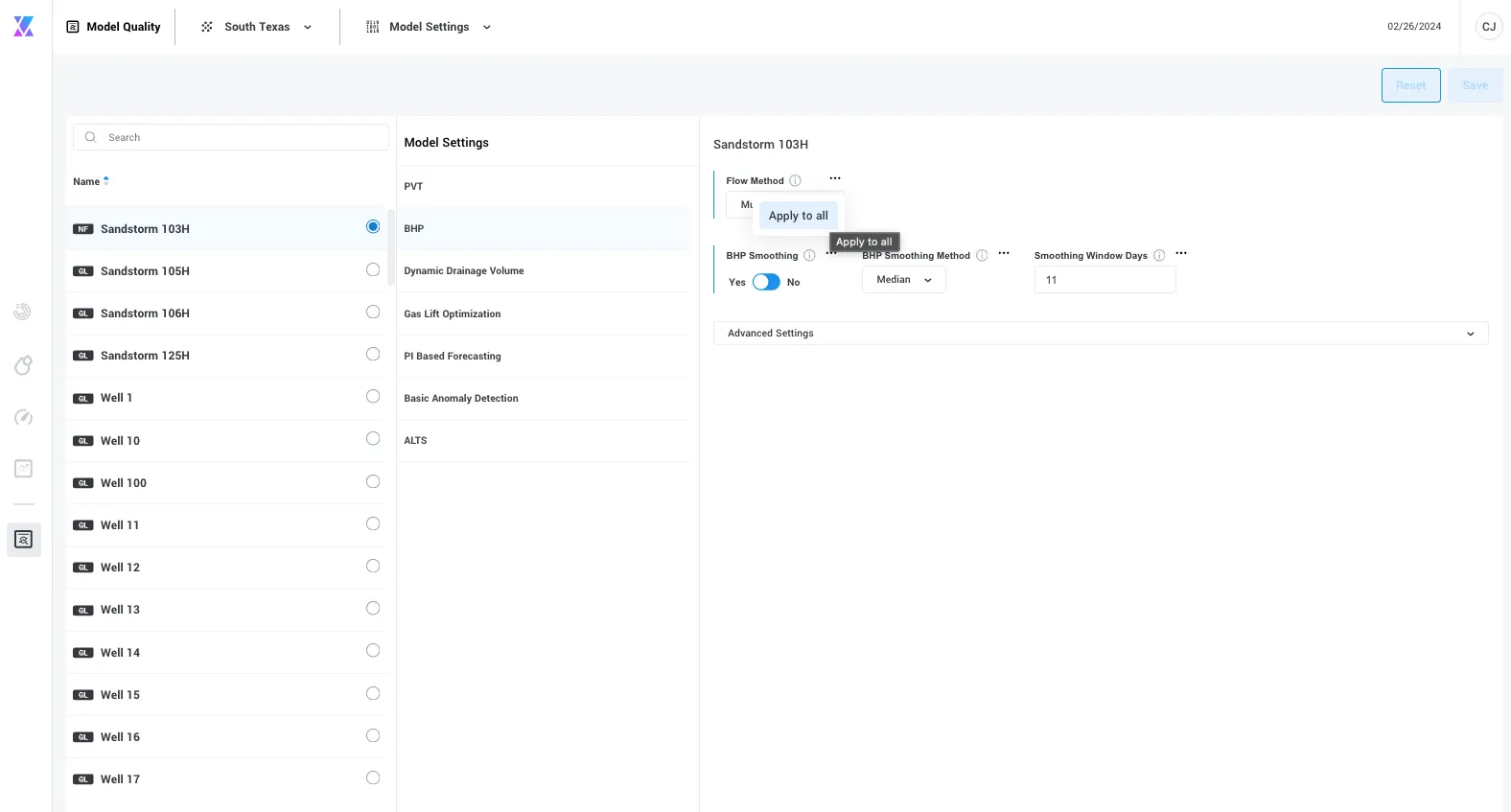

The model quality section allows you to change model settings on a well-by-well basis or for all wells in the group by using the "apply to all" functionality. Apply to all for a particular field will only change that field across all wells. This process would need repeated for each setting you adjust. Changes can be made in bulk before saving, and once saved, all affected wells will automatically recompute.
Caution should be exercised when changing model settings as this can have major impacts to the quality and absolute values of results.
